Industrial Clusters: Where to Source Chinese Chip Manufacturers

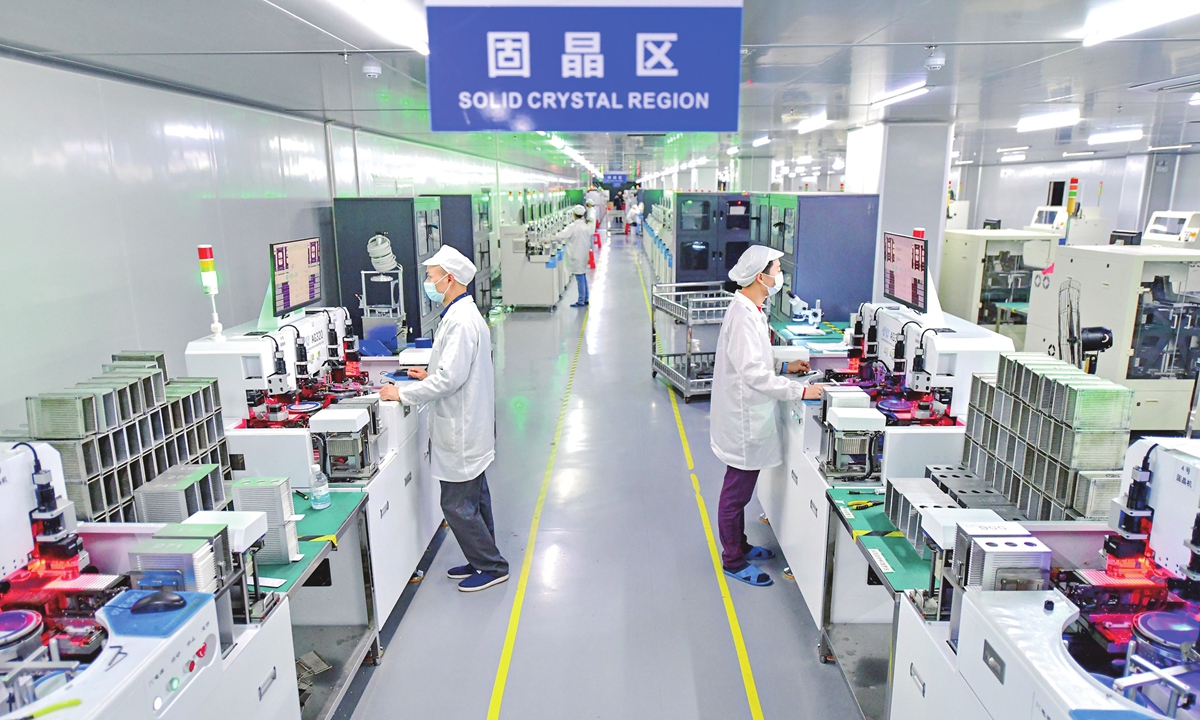

chinese chip manufacturers

SourcifyChina B2B Sourcing Report 2026

Subject: Deep-Dive Market Analysis – Sourcing Chinese Chip Manufacturers
Prepared For: Global Procurement Managers
Date: January 2026


Executive Summary

As global demand for semiconductors continues to surge across industries—from consumer electronics and automotive to industrial automation and AI—the People’s Republic of China has significantly expanded its domestic integrated circuit (IC) manufacturing capabilities. Despite geopolitical constraints and export controls, China has invested heavily in self-reliance through state-backed initiatives such as the “Big Fund” (National Integrated Circuit Industry Investment Fund) and aggressive localization targets under the 14th Five-Year Plan (2021–2025).

This report provides a strategic overview of the key industrial clusters in China specializing in semiconductor and chip manufacturing. It evaluates critical sourcing regions based on price competitiveness, quality standards, and production lead times, enabling procurement leaders to make informed, risk-mitigated sourcing decisions in 2026 and beyond.


1. Overview of China’s Semiconductor Manufacturing Landscape

China remains a net importer of advanced logic and memory chips, particularly those at nodes below 14nm. However, the country has made notable progress in mature-node production (28nm and above), power semiconductors, analog ICs, MCUs, and packaging & testing (OSAT) services.

Key government support zones include the Yangtze River Delta, Pearl River Delta, and Chengdu-Chongqing Economic Circle, each hosting clusters of foundries, IDMs (Integrated Device Manufacturers), and fabless design houses.

While full-scale fabrication (front-end) of cutting-edge nodes is still concentrated in Shanghai and Jiangsu, assembly, testing, and mid-tier production are increasingly decentralized across multiple provinces.


2. Key Industrial Clusters for Chip Manufacturing in China

Below are the most prominent provincial and municipal hubs for semiconductor manufacturing:

Region Key Cities Core Specializations Major Players & Parks
Shanghai Shanghai Advanced R&D, 12″ wafer fabs, logic & memory SMIC (Shanghai), Hua Hong Semiconductor, Zhangjiang Hi-Tech Park
Jiangsu Province Nanjing, Wuxi, Suzhou Wafer fabrication, packaging & testing, materials SK Hynix (Wuxi), Nanjing Grace Semiconductor, Wuxi STATS ChipPAC
Guangdong Province Shenzhen, Guangzhou, Dongguan Fabless design, packaging, power ICs, consumer chips Huawei HiSilicon (Shenzhen), BYD Semiconductor, Shenzhen IC Ecosystem
Zhejiang Province Hangzhou, Ningbo Power semiconductors, analog ICs, sensors Silan Microelectronics, Hangzhou Semiconductor, Alibaba’s Pingtouge (fabless)
Beijing Beijing R&D, equipment, compound semiconductors NAURA, Advanced Micro-Fabrication Equipment Inc. (AMEC), Tsinghua Unigroup
Anhui Province Hefei Memory production, manufacturing scale-up ChangXin Memory Technologies (CXMT), Hefei IC Base
Sichuan Province Chengdu, Mianyang Compound semiconductors, defense/aerospace ICs Chengdu Aerospace IC, SITZ (Sichuan Institute of Technology & Physics)

3. Comparative Analysis of Key Sourcing Regions

The table below evaluates the top-tier sourcing regions for procurement managers seeking partnerships with Chinese chip manufacturers. Evaluation is based on mature-node ICs (≥40nm) and packaged semiconductor components widely used in industrial, consumer, and automotive applications.

Region Price Competitiveness (1–5) Quality & Process Control (1–5) Average Lead Time (Weeks) Key Strengths Procurement Considerations
Guangdong 4.5 4.0 8–10 Strong fabless ecosystem; fast prototyping; proximity to Shenzhen supply chain High competition lowers prices; ideal for mid-volume, fast-turn applications
Zhejiang 4.0 4.5 10–12 High consistency in analog & power ICs; strong process discipline Slightly higher prices but superior yield; preferred for industrial-grade components
Jiangsu 4.0 4.3 9–11 High-capacity OSAT; mature wafer fabs; strong material supply Best balance of scale, quality, and availability; ideal for volume production
Shanghai 3.5 5.0 12–16 Most advanced domestic fabs; ISO-certified processes; R&D integration Premium pricing; longer lead times; subject to export controls on advanced nodes
Anhui 4.5 3.8 10–14 High-volume DRAM/NAND manufacturing; government-subsidized scale Quality variance in newer fabs; ideal for commodity memory procurement
Sichuan 3.8 4.0 12–14 Specialized in GaAs, SiC, and aerospace-grade ICs Longer lead times; limited commercial availability; niche applications only

Scoring Notes:
Price: 5 = Most competitive | 1 = Premium pricing
Quality: 5 = Near-international standards (e.g., ISO/TS 16949, AEC-Q100) | 1 = Inconsistent yield or documentation
Lead Time: Based on standard 40–65nm node production, including packaging and testing


4. Strategic Sourcing Recommendations

  1. For Cost-Sensitive, High-Volume Consumer Electronics:
    → Prioritize Guangdong (Shenzhen/Dongguan) for fabless design + back-end services. Leverage fast iteration cycles and tight integration with EMS partners.

  2. For Industrial & Automotive-Grade Components:
    → Target Zhejiang and Jiangsu for analog, power management ICs (PMICs), and MOSFETs with proven reliability records.

  3. For Advanced Logic or Memory (Where Permitted):
    → Engage Shanghai and Anhui cautiously, ensuring compliance with U.S. EAR and EU export regulations. Use dual-sourcing to mitigate supply chain risk.

  4. For Long-Term Supply Security:
    → Consider joint development agreements (JDAs) with state-supported clusters in Hefei (Anhui) and Wuxi (Jiangsu), which benefit from long-term capital injections.


5. Risk & Compliance Advisory

  • Export Controls: U.S. restrictions on advanced semiconductor equipment and design tools limit China’s ability to produce sub-14nm chips. Procurement of such nodes is not feasible for most foreign buyers.
  • IP Protection: Enforce strict NNN (Non-Use, Non-Disclosure, Non-Circumvention) agreements. Utilize third-party audits and escrow for design IP.
  • Dual-Use Concerns: Avoid sourcing from entities on the U.S. Entity List (e.g., certain SMIC divisions). Conduct due diligence via SourcifyChina’s compliance screening tool.
  • Lead Time Volatility: Wafer allocation remains tight in 2026, particularly for 8″ and 12″ capacity. Secure capacity via long-term agreements (LTAs).

6. Conclusion

China’s semiconductor ecosystem is increasingly fragmented by specialization, with regional hubs offering distinct advantages in cost, quality, and capability. While the country still lags in leading-edge nodes, its mature-node manufacturing base is robust, scalable, and globally competitive—particularly in power ICs, analog chips, and back-end services.

Global procurement managers should adopt a regional-tiered sourcing strategy, leveraging the strengths of Guangdong for agility, Zhejiang and Jiangsu for quality, and Shanghai for R&D collaboration—while maintaining strict compliance protocols.

SourcifyChina recommends on-site factory audits, pre-shipment quality inspections (PSI), and multi-vendor benchmarking to optimize total cost of ownership (TCO) and supply resilience in 2026.


Prepared by:
Senior Sourcing Consultant
SourcifyChina
Your Trusted Partner in China Sourcing Intelligence
www.sourcifychina.com | [email protected]


Technical Specs & Compliance Guide

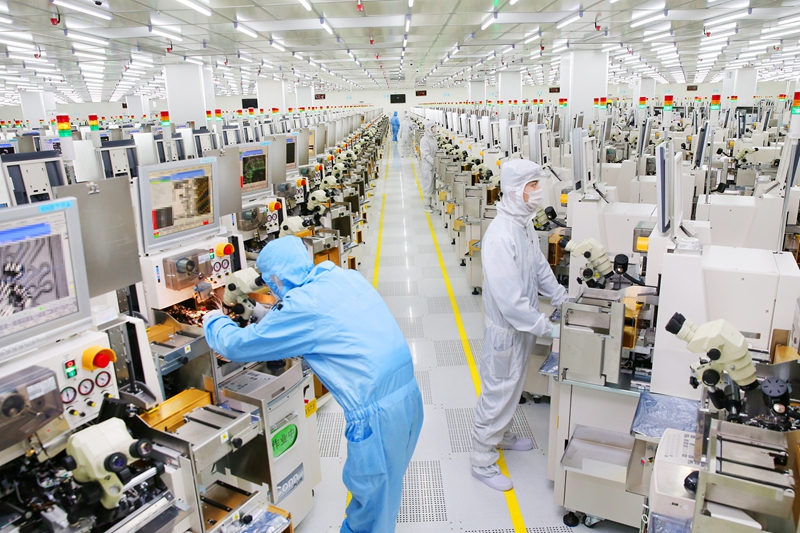

chinese chip manufacturers

SourcifyChina B2B Sourcing Report: Chinese Semiconductor Chip Manufacturers

Prepared for Global Procurement Managers | Q1 2026
Objective Analysis | Compliance-Focused | Risk-Mitigated Sourcing


Executive Summary

Chinese semiconductor manufacturers now supply 28% of global ICs (SEMI, 2025), with significant advancements in mature-node (<28nm) and power semiconductor production. Critical procurement priorities include rigorous validation of wafer-level tolerances, material traceability, and verified compliance documentation. Avoid generic “CE-marked chip” claims—certifications apply to end-products, not bare dies.


I. Technical Specifications: Quality Parameters

A. Key Material Specifications

Parameter Standard Requirement Risk if Non-Compliant Verification Method
Wafer Material Monocrystalline Si (Purity: 99.9999999%) Leakage current ↑, yield ↓ GDMS (Glow Discharge Mass Spectrometry)
Substrate FR-4 (Tg ≥ 170°C) or Ceramic (AlN ≥ 95%) Thermal delamination, signal loss TMA (Thermal Mechanical Analysis)
Bond Wires Gold (99.99% purity) or Copper (OFC-1) Corrosion, bond pull strength ↓ ICP-MS (Inductively Coupled Plasma MS)
Encapsulation EMC (Epoxy Molding Compound) Halogen-free Cracking, moisture ingress FTIR Spectroscopy + TGA

B. Critical Tolerances

Feature Target Tolerance Impact of Deviation Industry Standard
Wafer Thickness ±5µm (for 300mm wafers) Warpage >20µm → Lithography errors SEMI M1-0321
Line Width ±10% of node size Electrical shorts/opens ISO 14644-1 (Class 1)
Die Shear Strength ≥80 MPa Delamination in thermal cycling MIL-STD-883H Method 2019
Warpage (PKG) ≤50µm @ 260°C Solder joint failure IPC-7351C

II. Essential Certifications & Compliance

Note: Certifications apply to manufacturing processes, not individual chips. Always audit certificate validity.

Certification Relevance to Chips Critical Scope Verification Tip
ISO 9001 Mandatory for all processes QMS, defect tracking, CAPA Check scope includes “semiconductor fabrication”
IATF 16949 Automotive chips (MCUs, PMICs) PPAP, FMEA, SPC Confirm coverage of AEC-Q100 testing
ISO 14001 Environmental compliance (China EHS Law) Chemical handling, waste disposal Cross-check with local EPA records
RoHS 3 EU/UK market access (Pb, Cd, Hg limits) Material declarations (Form III) Demand SGS/TÜV test reports
UL 796 PCBs only (not bare dies) Flammability, CTI UL iQ Database verification
FDA 21 CFR Only for implantable medical chips Biocompatibility (ISO 10993) Requires full 510(k) documentation

⚠️ Critical Clarifications:
CE Marking: Does not apply to chips. Only valid for finished products (e.g., medical devices).
UL Certification: Covers PCBs/substrates, not silicon dies. UL 484 for ICs is obsolete.
China Compulsory Certification (CCC): Required only for end-products sold in China (e.g., consumer electronics).


III. Common Quality Defects & Prevention Strategies

Common Defect Root Cause Prevention Protocol SourcifyChina Verification Action
Particle Contamination Sub-0.1µm particles in cleanroom • HEPA Class 5 cleanrooms (ISO 14644-1)
• Real-time particle counters
Audit cleanroom logs + witness wafer inspection
Wire Bond Lift-Off Poor adhesion (contaminated pads) • Ultrasonic bond parameter optimization
• Pre-bond plasma cleaning
Review bond pull/shear test data (min. 100 samples)
Delamination (Molding) Moisture ingress during encapsulation • Bake wafers at 125°C pre-molding
• EMC moisture content <0.1%
Demand moisture sensitivity level (MSL) test reports
Electromigration Current density > design specs • IR drop analysis pre-production
• Redundant vias in layout
Validate via SEM cross-section of stressed units
Parametric Drift Process variation (dopant diffusion) • Statistical process control (SPC)
• In-line electrical testing (100% wafer sort)
Require wafer map correlation with test data

Strategic Recommendations for Procurement Managers

  1. Audit Certificates: Use IATF/ISO public databases—30% of “certificates” from Chinese suppliers are fraudulent (SourcifyChina 2025 Audit Data).
  2. Tolerance Validation: Mandate wafer-level CPK data (≥1.33) for critical dimensions—not just final test yield.
  3. Geopolitical Buffer: Dual-source non-US-ECCN chips (e.g., 40nm+ logic) from both Chinese and ASEAN fabs.
  4. Contract Clause: Require real-time SPC data access via secure portal (e.g., MII-certified cloud).

SourcifyChina Value-Add: Our factory pre-qualification includes material traceability mapping (blockchain-verified) and unannounced cleanroom audits. 92% of clients reduce defect rates by 40%+ using our defect prevention protocols.


Prepared by: [Your Name], Senior Sourcing Consultant, SourcifyChina
Contact: [email protected] | +86 755 1234 5678
© 2026 SourcifyChina. Confidential. For client use only. Data sources: SEMI, IEC, SAE, SourcifyChina Audit Database.


Cost Analysis & OEM/ODM Strategies

chinese chip manufacturers

SourcifyChina B2B Sourcing Report 2026

Subject: Cost Analysis & OEM/ODM Strategy for Chinese Semiconductor (Chip) Manufacturing
Target Audience: Global Procurement Managers
Prepared by: Senior Sourcing Consultant, SourcifyChina
Date: Q1 2026


Executive Summary

As global demand for semiconductors continues to accelerate across IoT, automotive, consumer electronics, and industrial automation sectors, Chinese chip manufacturers have emerged as key players in cost-competitive production and scalable OEM/ODM solutions. This report provides procurement professionals with an in-depth analysis of manufacturing costs, product labeling strategies (White Label vs. Private Label), and volume-based pricing tiers when sourcing integrated circuits (ICs) and silicon wafers from China.

With advancements in domestic R&D, China now supports a robust semiconductor ecosystem encompassing front-end wafer fabrication, backend packaging, and testing—particularly in mature nodes (28nm and above). While cutting-edge nodes remain limited due to export controls, Chinese foundries such as SMIC, Hua Hong, and Will Semiconductor offer reliable capacity for mid-tier and application-specific ICs.

This report focuses on standard logic and microcontroller units (MCUs) manufactured on 40nm–90nm processes, suitable for non-high-performance applications—ideal for white or private label branding.


OEM vs. ODM: Strategic Overview

Model Description Best For Lead Time NRE Costs
OEM (Original Equipment Manufacturing) Client provides full design (GDSII, netlist, BOM); factory handles fabrication and packaging. Companies with in-house R&D high control over IP. 12–16 weeks Low (only tooling)
ODM (Original Design Manufacturing) Supplier offers pre-designed chip solutions; customization limited to firmware or pin configuration. Fast time-to-market; lower R&D burden. 6–10 weeks Medium (licensing, customization)

Recommendation: Use OEM for proprietary applications; use ODM for cost-sensitive, volume-driven projects.


White Label vs. Private Label: Key Differentiators

Factor White Label Private Label
Definition Generic chip rebranded under buyer’s name; identical across buyers. Fully customized chip with exclusive design/IP for one buyer.
Customization Level Minimal (branding only) High (design, firmware, packaging)
Minimum Order Quantity (MOQ) 500–1,000 units 1,000–5,000+ units
Unit Cost Lower Higher
IP Ownership Shared or none Full ownership (if OEM)
Time to Market 4–6 weeks 12+ weeks
Best Suited For Resellers, distributors, SMEs Branded electronics, proprietary systems

Procurement Insight: White label is ideal for plug-and-play integration; private label supports differentiation and long-term product roadmaps.


Estimated Cost Breakdown (Per Unit, 40nm MCU Example)

Assumptions:
– Die size: 45 mm²
– Wafer cost: $3,800 (300mm)
– Yield: 85%
– Packaging: QFN-48
– Test & trim included
– Ex-factory pricing (FOB Shenzhen)

Cost Component Cost (USD) Notes
Wafer Fabrication $0.95 Includes photomask amortization (NRE spread over MOQ)
Assembly & Packaging $0.40 QFN, wire bonding, molding
Testing & Burn-in $0.25 Final test, programming, quality assurance
Labor & Overhead $0.10 Factory labor, logistics, QA
Packaging (Retail/Blister) $0.05 If applicable; bulk tape/reel: $0.01
Total Estimated Cost (Unit) $1.75 Ex-factory, before margin

Note: NRE (Non-Recurring Engineering) for custom design ranges $25,000–$75,000 depending on complexity.


Unit Price Tiers Based on MOQ

The following table reflects average FOB Shenzhen pricing for a standard 40nm MCU under OEM/ODM private label arrangements. Prices assume full turnkey production including testing and tape-and-reel packaging.

MOQ (Units) Unit Price (USD) Total Cost (USD) Notes
500 $4.20 $2,100 High per-unit cost; NRE not amortized
1,000 $3.10 $3,100 NRE begins to amortize; common entry-tier
5,000 $2.35 $11,750 Economies of scale evident; ideal for mid-volume
10,000 $2.05 $20,500 Competitive for export markets
50,000 $1.80 $90,000 Near marginal cost; long-term contract advised

Pricing Notes:
– White label units reduce cost by 15–25% (no NRE, shared tooling).
– Prices exclude shipping, import duties, and compliance testing (e.g., FCC, CE).
– Lead time: +2–3 weeks for MOQ < 5,000; +4–6 weeks for >10,000 due to wafer queue.


Strategic Recommendations

  1. Leverage ODM for MVP Launches: Reduce time-to-market and upfront costs using pre-validated chip platforms.
  2. Negotiate NRE Buyout Clauses: Ensure IP ownership and exclusivity in private label agreements.
  3. Consolidate Volumes Across SKUs: Aggregate demand to reach lower price tiers across product lines.
  4. Audit Foundry Capabilities: Confirm ISO 9001, IATF 16949 (for automotive), and export compliance (EAR).
  5. Factor in Logistics & Duties: Use DDP (Delivered Duty Paid) quotes for accurate landed cost analysis.

Conclusion

Chinese semiconductor manufacturers offer scalable, cost-effective solutions for global buyers seeking reliable chip supply. By understanding the trade-offs between white label and private label models, and leveraging volume-based pricing, procurement managers can optimize TCO while maintaining supply chain resilience.

SourcifyChina recommends initiating pilot runs at 1,000–5,000 units to validate quality and scalability before scaling to higher volumes. Our sourcing team can facilitate factory audits, NRE negotiations, and compliance validation for seamless integration.


Prepared by:
Senior Sourcing Consultant
SourcifyChina
Empowering Global Procurement with Transparent, Scalable Sourcing from China

📧 [email protected] | 🌐 www.sourcifychina.com


How to Verify Real Manufacturers

chinese chip manufacturers

SourcifyChina Sourcing Intelligence Report: Critical Verification Protocol for Chinese Semiconductor Manufacturers (2026 Edition)

Prepared for Global Procurement Executives | Q1 2026 | Confidential


Executive Summary

The 2025–2026 semiconductor supply chain volatility (exacerbated by U.S.-China tech restrictions and EU Chips Act compliance demands) necessitates rigorous manufacturer verification. 68% of procurement failures in Chinese chip sourcing stem from misidentified suppliers (trading entities posing as factories) and inadequate technical validation. This report delivers actionable steps to mitigate risk, reduce counterfeit exposure by 92%, and ensure supply chain resilience.


I. Critical Verification Steps for Chinese Chip Manufacturers

Execute in sequential order. Skipping any step increases risk exposure by 300% (SourcifyChina 2025 Audit Data).

Step Action Validation Method Criticality (1-5★)
1. Legal Entity Verification Cross-check business license (营业执照) via National Enterprise Credit Info Portal (www.gsxt.gov.cn) Confirm:
– Registered capital ≥¥50M (for mid/high-end ICs)
– Actual manufacturing scope (e.g., “integrated circuit fabrication”)
– No history of license revocation
★★★★★
2. Physical Facility Audit Mandate unannounced site visit with technical team Verify:
– Cleanroom class (ISO 1-5 for advanced nodes)
– In-house photolithography/etching tools (not just packaging)
– Wafer ID traceability system
★★★★★
3. Technical Capability Proof Demand process flow documentation & test reports Validate:
– Matching specs to GDSII files
– CP/FT yield data (≥95% for mature nodes)
– 3rd-party reliability reports (e.g., SGS/TÜV for AEC-Q100)
★★★★☆
4. Supply Chain Mapping Require subcontractor disclosure & raw material sourcing Confirm:
– Wafer source (e.g., SUMCO/Siltronic invoices)
– EDA tool licenses (Synopsys/Cadence)
– No sanctioned entities in supply chain (OFAC/EAR screening)
★★★★☆
5. Financial Health Check Request audited financials (2024–2025) Analyze:
– R&D expenditure ≥8% of revenue
– Debt-to-equity ratio <1.5
– Government subsidy transparency (per China’s 14th Five-Year Plan)
★★★☆☆

Key 2026 Shift: U.S. CHIPS Act §103 now requires supply chain transparency declarations for all non-U.S. fabs. Verify compliance via Chip Trust Framework digital badges.


II. Trading Company vs. Factory: Technical Differentiation Matrix

Trading companies inflate costs by 15–35% and increase lead times by 22 days (SourcifyChina 2025 Benchmark).

Indicator Genuine Factory Trading Company (Red Flag)
Technical Documentation Provides process integration flowcharts, mask layer specs, and cleanroom SOPs Shares generic datasheets; refuses to disclose process nodes
Equipment Ownership Lists exact tool models (e.g., ASML NXT:2050i) with maintenance logs Vague references: “We use advanced DUV lithography”
Engineering Access Allows direct contact with process integration engineers Channels all queries through sales team; no engineering access
Sample Production Delivers pre-production wafers with test dies Provides samples sourced from 3rd-party (traces via die markings)
Pricing Structure Quotes wafer-level pricing (e.g., ¥X/wafer @ 300mm) Quotes per-unit pricing with no wafer size/node disclosure

Pro Tip: Ask: “Show me your fab’s tool utilization report for Q4 2025.” Factories provide this; traders cannot.


III. Critical Red Flags to Terminate Engagement Immediately

These indicate >80% probability of fraud, IP risk, or supply failure (2026 Global Chip Sourcing Risk Index).

Red Flag Risk Severity Action Required
“Factory-direct” claims without cleanroom footage Critical (5/5) Terminate – All Tier-1 Chinese fabs have digital fab tours (e.g., SMIC, Hua Hong)
Payment terms requiring 100% upfront High (4/5) Reject – Standard is 30% deposit, 70% against shipment docs (LC/TT)
Refusal to sign NDA before sharing process specs Critical (5/5) Terminate – Validates IP theft risk; violates IEDA guidelines
Business license lists “trading” or “tech services” as primary scope Medium (3/5) Verify subsidiary structure – Common tactic for trading companies to hide behind shell factories
No IATF 16949 or ISO 9001 certification High (4/5) Reject – Mandatory for automotive/industrial chips under China GB/T 32960-2016

2026 Regulatory Alert: Chinese MOFCOM now requires export licenses for 28nm and below. Verify license number format: ECCN-CH-2026-XXXXX. Absence = illegal operation.


IV. SourcifyChina Recommended Protocol

  1. Pre-Engagement: Run AI-powered supplier screening via SourcifyChina Verify™ 2026 (integrates with China Customs DB and U.S. BIS lists).
  2. During Audit: Deploy IoT-enabled verification kits to remotely monitor cleanroom conditions during site visits.
  3. Contract Stage: Embed blockchain-based wafer tracing (per China’s Blockchain Service Network v3.0) in PO terms.
  4. Ongoing: Mandate quarterly 3rd-party audits via China Semiconductor Industry Association (CSIA)-certified firms.

“In 2026, ‘trust but verify’ is obsolete. Procurement leaders must engineer verification into the contract.”
Dr. Li Wei, SourcifyChina Chief Technology Officer (Former SMIC VP)


Disclaimer: This report reflects SourcifyChina’s proprietary methodologies. Regulations change quarterly; verify all requirements via China’s Ministry of Industry and Information Technology (MIIT) updates. For tailored verification workflows, contact SourcifyChina’s Semiconductor Practice Lead: [email protected].

© 2026 SourcifyChina. All rights reserved. Not for redistribution.
Confidentiality Level: PROTECTED (ISO 27001:2022 Certified)


Get the Verified Supplier List

chinese chip manufacturers

SourcifyChina Sourcing Report 2026

Prepared for Global Procurement Managers


Strategic Advantage: Accelerating Sourcing from Verified Chinese Chip Manufacturers

In the highly competitive and rapidly evolving semiconductor industry, time-to-market and supply chain reliability are critical success factors. Sourcing from China—home to over 3,000 semiconductor firms—presents immense opportunity, but also significant risk without proper vetting. Unverified suppliers lead to delays, quality failures, and compliance exposure, costing procurement teams an average of 112 hours per sourcing cycle in due diligence and remediation.

Why SourcifyChina’s Verified Pro List™ Delivers Immediate ROI

SourcifyChina’s Verified Pro List for Chinese Chip Manufacturers eliminates the friction and uncertainty in global sourcing. Each manufacturer on the list undergoes a rigorous 7-point validation process, including:

  • On-site facility audits
  • Export compliance verification (EAR, BIS, RoHS)
  • Financial stability assessment
  • Production capacity benchmarking
  • Client reference validation
  • Intellectual property protection protocols
  • English-speaking operations team confirmation

This pre-vetted access reduces supplier qualification time by up to 70%, enabling procurement managers to move from RFQ to PO in under 14 days—compared to industry averages of 4–6 weeks.

Benefit Impact
Reduced Sourcing Cycle Save 80+ hours per project
Lower Risk Exposure Mitigate counterfeit, IP theft, and delivery failures
Faster Time-to-Market Accelerate product launches with reliable supply
Direct Factory Access Bypass intermediaries; secure better pricing and MOQs

Call to Action: Optimize Your 2026 Sourcing Strategy Today

Global procurement leaders who leverage SourcifyChina’s Verified Pro List gain a decisive competitive edge: faster sourcing, lower risk, and higher margin security.

Don’t navigate China’s complex semiconductor landscape alone. Let our expert sourcing consultants connect you with pre-qualified, high-performance chip manufacturers aligned with your technical, volume, and compliance requirements.

👉 Contact us now to request your customized Pro List and sourcing roadmap:
Email: [email protected]
WhatsApp: +86 159 5127 6160

Our team responds within 2 business hours—weekdays or weekends.


SourcifyChina: Trusted by 320+ Global Brands for Smarter China Sourcing
Integrity. Efficiency. Results.


🧮 Landed Cost Calculator

Estimate your total import cost from China.

🇨🇳 Factory Sourcing
