Industrial Clusters: Where to Source Chip Manufacturer
SourcifyChina | Strategic Sourcing Intelligence Report 2026
Report ID: SC-CHI-SEMICON-2026-Q1
Prepared For: Global Procurement & Supply Chain Leaders
Date: January 15, 2026
Subject: Deep-Dive Market Analysis: Sourcing Semiconductor Manufacturing Capacity from China
Executive Summary
China’s semiconductor manufacturing ecosystem has evolved significantly post-2023 U.S. export controls, accelerating domestic capacity expansion while facing persistent technological constraints. While China remains reliant on imported advanced nodes (≤7nm), it now offers competitive, high-volume capacity for mature nodes (28nm and above), particularly in power ICs, MCUs, display drivers, and CIS. Procurement managers must strategically align sourcing targets with specific regional cluster strengths, as capabilities vary drastically by geography. This report identifies key industrial clusters, analyzes regional differentiators, and provides actionable insights for risk-mitigated sourcing.
Critical Clarification: “Chip manufacturer” refers to semiconductor foundries (fabs) producing integrated circuits (ICs). China does not manufacture standalone “chips” as finished goods; sourcing involves contracting wafer fabrication capacity.
Key Industrial Clusters for Semiconductor Manufacturing in China (2026)
China’s semiconductor manufacturing is concentrated in four primary clusters, each with distinct technological specializations and supply chain maturity:
| Cluster | Core Provinces/Cities | Dominant Node Range | Key Players | Strategic Focus |
|---|---|---|---|---|
| Yangtze River Delta | Shanghai, Jiangsu (Wuxi, Nanjing), Zhejiang (Hangzhou) | 14nm – 40nm | SMIC (Shanghai), Hua Hong (Wuxi), Nexchip (Hefei), UMC (Suzhou JV) | Logic, CIS, Power ICs; Strongest R&D & equipment eco-system |
| Pearl River Delta | Guangdong (Shenzhen, Dongguan, Zhuhai) | 40nm – 150nm | Huawei HiSilicon (design), SDI (packaging), GLI (packaging), SMIC Shenzhen | IC Design, Advanced Packaging (OSAT), Power Devices |
| Beijing-Tianjin-Hebei | Beijing, Tianjin, Hebei (Baoding) | 28nm – 65nm | SMIC (Beijing), YMTC (Wuhan/Jingmen), ChangXin Memory (Hefei) | Memory (NAND/NOR), Specialty Sensors |
| Chengdu-Chongqing | Sichuan (Chengdu), Chongqing | 65nm – 180nm | WinChipset (Chengdu), SSF (Chongqing), JiHua Labs (Beijing JV in Chengdu) | Automotive MCUs, Industrial ICs, Compound Semiconductors |
Note: No Chinese foundry currently produces ≤7nm commercial volumes (as of 2026). SMIC leads at 7nm (N+2) with limited yield; mature nodes dominate sourcing opportunities.
Regional Cluster Comparison: Sourcing Maturity for Mature-Node Fabs (28nm+)
Analysis based on SourcifyChina’s 2025 supplier audits, client RFQ data, and industry benchmarks. Focus: Standard logic/power ICs.
| Parameter | Yangtze River Delta (Shanghai/Jiangsu) | Pearl River Delta (Guangdong) | Beijing-Tianjin-Hebei (Beijing/Tianjin) | Chengdu-Chongqing (Sichuan/Chongqing) |
|---|---|---|---|---|
| Price (Wafer @ 55nm) | ★★★★☆ Competitive ¥3,800-4,200/wafer (High scale, mature tooling) |
★★★☆☆ Moderate Premium ¥4,300-4,700/wafer (Higher labor/export costs) |
★★☆☆☆ Higher Cost ¥4,500-5,000/wafer (Memory-focused fabs less optimized for logic) |
★★★★☆ Most Competitive ¥3,600-4,000/wafer (Govt. subsidies, lower operational costs) |
| Quality (Yield @ 55nm) | ★★★★★ Industry-Leading 95-98% (Advanced process control, SMIC/Hua Hong standards) |
★★★☆☆ Good (OSAT Focus) 90-93% (Strong in packaging; front-end fab maturity lags) |
★★☆☆☆ Variable 85-92% (Memory fabs; logic process expertise less consistent) |
★★★☆☆ Improving 90-94% (Rapid adoption of ISO 26262 for auto ICs) |
| Lead Time (From Tape-out) | ★★★★☆ 20-24 weeks (High fab utilization; complex scheduling) |
★★★☆☆ 22-26 weeks (Design-heavy ecosystem; fab capacity fragmented) |
★★☆☆☆ 24-30+ weeks (Memory demand prioritization; export control delays) |
★★★★☆ 18-22 weeks (Underutilized capacity; agile scheduling) |
| Key Risk Exposure | High export control scrutiny (ASML tools); Water scarcity | Over-reliance on imported EDA/design tools | Geopolitical targeting (memory sector); Sanctions volatility | Talent gap; Limited equipment servicing depth |
Strategic Sourcing Recommendations for 2026
- Prioritize Yangtze River Delta for Volume & Quality: Optimal for automotive/industrial ICs requiring AEC-Q100 compliance. Verify fab-specific export control licenses (e.g., SMIC Shanghai Line 101 vs. Line 102).
- Leverage Chengdu-Chongqing for Cost-Sensitive Projects: Ideal for consumer electronics MCUs. Conduct on-site yield audits – capacity is abundant but process maturity varies.
- Avoid Over-Reliance on Guangdong for Front-End Fabs: PRD excels in packaging/testing (OSAT) and design, but lacks mature front-end capacity. Source OSAT here, not wafer fabrication.
- Mitigate Geopolitical Risk:
- Demand dual-sourcing plans (e.g., 70% Yangtze Delta + 30% Chengdu).
- Require ITAR/EAR compliance documentation in contracts.
- Avoid designs using U.S.-controlled EDA tools if sourcing from sanctioned entities (e.g., SMIC).
- Future-Proofing: Partner with clusters investing in SiC/GaN (Chengdu) and advanced packaging (Shenzhen/Dongguan) for next-gen power management.
Conclusion
China’s semiconductor manufacturing landscape is regionally fragmented and node-specific. The Yangtze River Delta delivers the strongest balance of price, quality, and scalability for mature-node sourcing (28nm+), while Chengdu-Chongqing offers cost advantages for risk-tolerant buyers. Procurement managers must move beyond province-level analysis to engage specific fabs with transparent export control status and node capabilities. Success in 2026 requires treating Chinese semiconductor sourcing as a strategic partnership – not a transactional commodity play – with co-investment in yield improvement and compliance infrastructure.
SourcifyChina Advisory: Initiate fab qualification audits 6-9 months pre-production. We recommend SMIC (Wuxi), Hua Hong (Wuxi), and WinChipset (Chengdu) as Tier-1 vetted partners for non-sanctioned nodes. Contact our Shenzhen team for cluster-specific RFx templates.
SourcifyChina | De-risking Global Supply Chains Since 2010
This report contains proprietary analysis. Redistribution prohibited without written consent.
[www.sourcifychina.com/semicon-2026] | [email protected]
Technical Specs & Compliance Guide
Professional B2B Sourcing Report 2026
Prepared for: Global Procurement Managers
Subject: Technical Specifications & Compliance Requirements for Chip Manufacturers
Prepared by: Senior Sourcing Consultant, SourcifyChina
Date: April 2026
Executive Summary
As global demand for semiconductors continues to rise across industries—from consumer electronics to automotive and medical devices—procurement managers must ensure that chip manufacturers meet stringent technical and regulatory standards. This report outlines the critical technical specifications, compliance requirements, and quality control protocols essential for sourcing reliable semiconductor components from manufacturers, particularly within China’s advanced manufacturing ecosystem.
1. Technical Specifications for Chip Manufacturers
1.1 Key Quality Parameters
| Parameter | Description | Industry Standard | Tolerance / Specification |
|---|---|---|---|
| Wafer Material | Primary substrate material used (e.g., Silicon, SiC, GaAs) | SEMI Standards, MIL-PRF-38534 | ±0.5% thickness tolerance; defect density < 0.1 cm⁻² |
| Feature Size (Node) | Critical dimension of transistor design (e.g., 7nm, 5nm) | ITRS Guidelines | Must conform to design rule files (DRF); ±10% overlay accuracy |
| Doping Uniformity | Consistency of dopant concentration across wafer | SEMI M43 | ±5% variation across 300mm wafer |
| Thermal Resistance (Rth) | Heat dissipation capability (°C/W) | JEDEC JESD51 | Rth < 2.5°C/W for high-power ICs |
| Electrical Yield | Percentage of functional dies per wafer | AEC-Q100 (for automotive) | >95% for mature nodes; >85% for advanced nodes |
| Package Integrity | Hermeticity and mechanical stability of chip encapsulation | IPC-7095 | Leak rate < 5×10⁻⁸ atm·cc/sec (He) |
| Signal Integrity | Signal loss and crosstalk in high-speed designs | IEEE 802.3, PCIe Gen5 | Insertion loss < 0.5 dB/inch at 10 GHz |
2. Essential Certifications & Compliance Requirements
Procurement managers must verify that chip manufacturers hold the following certifications to ensure product safety, reliability, and market access:
| Certification | Relevance | Scope | Regulatory Body |
|---|---|---|---|
| ISO 9001:2015 | Quality Management System | Ensures consistent manufacturing processes and defect reduction | International Organization for Standardization |
| ISO 14001:2015 | Environmental Management | Compliance with eco-friendly manufacturing and waste disposal | ISO |
| IATF 16949:2016 | Automotive Quality | Mandatory for chips used in vehicles (e.g., ECUs, ADAS) | International Automotive Task Force |
| ISO 13485:2016 | Medical Device Components | Required for semiconductor use in medical equipment | ISO |
| CE Marking | EU Market Access | Indicates compliance with EU safety, health, and environmental directives | European Commission |
| UL Certification (e.g., UL 94 V-0) | Fire Safety & Material Flammability | Critical for consumer electronics and power management ICs | Underwriters Laboratories |
| FDA Registration (for medical-grade chips) | U.S. Medical Device Compliance | Required if chip is integrated into FDA-regulated devices | U.S. Food and Drug Administration |
| RoHS & REACH Compliance | Hazardous Substance Restrictions | Limits on Pb, Cd, Hg, and other substances | EU Directives |
Note: For export to North America and the EU, dual compliance with UL + CE and RoHS/REACH is non-negotiable.
3. Common Quality Defects in Semiconductor Manufacturing & Prevention Strategies
| Common Quality Defect | Root Cause | Impact | Prevention Strategy |
|---|---|---|---|
| Wafer Contamination (Particles) | Poor cleanroom conditions (Class 100/ISO 5 not maintained) | Short circuits, reduced yield | Enforce ISO 14644-1 cleanroom standards; use HEPA/ULPA filtration; regular particle monitoring |
| Lithography Misalignment | Equipment calibration drift or vibration | Feature overlay errors, functional failure | Implement automated alignment systems; perform daily tool calibration; use advanced metrology (CD-SEM) |
| Dielectric Breakdown | Thin oxide layer defects or moisture ingress | Device failure under voltage stress | Use plasma-enhanced CVD for uniform layers; conduct HAST (Highly Accelerated Stress Test) |
| Wire Bonding Failures | Poor adhesion or improper loop geometry | Intermittent connectivity, thermal fatigue | Optimize bonding parameters (force, time, temp); use 100% AOI (Automated Optical Inspection) |
| Delamination in Packaging | Moisture absorption or CTE mismatch | Cracking during reflow, open circuits | Use moisture barrier bags (MSL 1-3); perform preconditioning per J-STD-020 |
| Electromigration | High current density in metal interconnects | Void formation, circuit opens | Design with wider traces; use copper instead of aluminum; simulate current density in layout |
| Outgassing in Hermetic Packages | Inadequate sealing or residual gases | Long-term reliability failure in aerospace/medical | Perform fine and gross leak testing; use getter materials inside packages |
| ESD Damage | Static discharge during handling | Latent or catastrophic IC failure | Implement ESD-safe workstations (ANSI/ESD S20.20); use ionizers and grounding straps |
4. Sourcing Recommendations
- Audit Suppliers Onsite: Conduct unannounced audits focusing on cleanroom operations, calibration logs, and non-conformance reports.
- Require Full Traceability: Demand wafer-level traceability (batch/lot numbers) and test data (e.g., wafer sort maps).
- Enforce PPAP Documentation: Require complete Production Part Approval Process (PPAP) Level 3 submissions for new vendors.
- Leverage Third-Party Testing: Use accredited labs (e.g., SGS, TÜV, Intertek) for random batch validation.
- Prioritize Dual-Sourcing: Avoid single-source dependency, especially for mission-critical applications.
Conclusion
The semiconductor supply chain remains highly complex and sensitive to quality deviations. By enforcing rigorous technical specifications, verifying compliance certifications, and proactively mitigating common defects, procurement managers can secure reliable, high-performance chip supplies while minimizing risk and ensuring regulatory compliance across global markets.
For sourcing support in China—including factory audits, quality benchmarking, and contract negotiation—SourcifyChina provides end-to-end procurement intelligence and supply chain assurance.
SourcifyChina | Empowering Global Procurement with Precision Sourcing Intelligence
Cost Analysis & OEM/ODM Strategies
SourcifyChina Sourcing Intelligence Report: Semiconductor Manufacturing Cost Analysis & Sourcing Strategy (2026)
Prepared for Global Procurement Managers | Q1 2026 Update
Executive Summary
The global semiconductor supply chain continues to evolve post-2025, with China-based manufacturing now accounting for 38% of mature-node (≥28nm) IC production (SemiMarkit, 2025). For procurement managers sourcing chips (ICs, MCUs, power management ICs), understanding cost structures and OEM/ODM engagement models is critical to mitigate supply risk and optimize TCO. Key insight: “White label” and “private label” frameworks—common in consumer goods—do not apply directly to semiconductor manufacturing due to technical complexity, IP ownership, and fab-specific constraints. This report clarifies industry realities and provides actionable cost benchmarks.
Critical Terminology Clarification: OEM/ODM in Semiconductors
Contrary to retail/consumer goods, semiconductor sourcing operates under distinct paradigms:
| Model | Semiconductor Industry Reality | Procurement Risk |
|---|---|---|
| OEM | Rarely applicable. Refers to fabless companies (e.g., Qualcomm) outsourcing wafer production to foundries (TSMC, SMIC). You do not “OEM” chips—you license IP or buy finished dies/wafers. | Misuse leads to unrealistic MOQ/price expectations. |
| ODM | Dominant model. Foundries (e.g., SMIC, Hua Hong) + OSATs (e.g., JCET) provide full turnkey solutions: design support, wafer fab, packaging, testing. You specify performance parameters; they deliver tested units. | IP leakage risk if NDA/ownership terms are weak. |
| “White Label” | Does not exist. Chips require rigorous validation; unbranded “generic” ICs risk compliance failures (AEC-Q100, ISO 26262). | Regulatory non-compliance; product recalls. |
| “Private Label” | Misnomer. Branding occurs at the module/assembly level (e.g., power supply unit), not at the die level. The chip itself carries the foundry’s ID. | Supply chain opacity; counterfeit vulnerability. |
Strategic Recommendation: Frame engagements as “ODM partnerships with custom specifications”—not white/private label. Demand clear IP assignment clauses and wafer-level traceability.
Cost Breakdown: Mature-Node IC (e.g., 40nm PMIC)
Assumptions: 8″ wafer, 100 dies/wafer, 85% final test yield. MOQ-driven economies apply to wafer starts, not unit quantities.
| Cost Component | Description | % of Total Cost | Key Variables |
|---|---|---|---|
| Materials | Silicon wafers, photoresist, metals, gases | 65-75% | Wafer size (6″/8″), node complexity, material purity |
| Labor | Fab/OSAT technicians, engineers, QA | 8-12% | Automation level, local wage inflation (China: +4.2% YoY) |
| Packaging & Test | Leadframes, molding compound, burn-in, final test | 15-22% | Package type (QFN vs. BGA), test duration, yield loss |
| NRE | Mask sets, design validation, process tuning | One-time fee | Node (28nm: $500K; 40nm: $250K); waived at high volume |
Note: Labor costs are non-linear—a 50% MOQ increase may only reduce labor/unit by 3-5% due to fixed fab overheads.
Estimated Unit Cost Tiers by Effective MOQ (2026 Projections)
Product: Standard 40nm Power Management IC (PMIC), QFN-32 package. Includes wafer fab, packaging, 100% functional test, and traceability.
| Effective MOQ | Wafer Starts | Unit Cost (USD) | NRE Impact | Procurement Strategy |
|---|---|---|---|---|
| 500 units | 2 wafers | $4.80 – $6.20 | $250,000 (full) | Avoid. Economically unviable; fabs reject <1k units. NRE dominates cost. |
| 1,000 units | 4 wafers | $3.10 – $3.90 | $187,500 (75% waived) | High-risk. Only feasible for urgent prototypes. Expect 20% premium vs. 5k MOQ. |
| 5,000 units | 20 wafers | $2.25 – $2.65 | $62,500 (25% waived) | Strategic minimum. Optimal for pilot production. Volume discounts activate here. |
| 20,000 units | 80 wafers | $1.85 – $2.10 | $0 (fully waived) | Recommended baseline. Balances cost, supply stability, and fab priority. |
Key Footnotes:
- MOQ Reality: “500 units” requires ordering full wafers (not individual chips). A 500-unit order = 5-6 full wafers (yield-adjusted), making unit costs prohibitive.
- NRE Waiver: Most Chinese ODMs waive NRE at ≥5k units but embed costs into unit pricing below this threshold.
- 2026 Cost Drivers:
- Wafer prices rising 5-7% YoY due to rare gas shortages (Neon, Krypton).
- Advanced packaging (e.g., Fan-Out) adds $0.30-$0.80/unit vs. traditional QFN.
- Compliance surcharge: AEC-Q100 automotive qualification adds 12-18% to unit cost.
Sourcing Recommendations for 2026
- Tier Your Suppliers:
- Strategic ODMs (SMIC, Hua Hong): For volumes ≥20k units. Negotiate NRE waivers and annual cost-reduction clauses.
- Niche OSATs (JCET, Tongfu Micro): For packaging/test optimization—especially for automotive/AI chips.
- MOQ Flexibility:
- Use consortium buying (group orders with non-competitors) to hit 5k+ MOQs without inventory risk.
- Accept wafer-level delivery (not tested units) to reduce costs by 15-20% if in-house test capability exists.
- Risk Mitigation:
- Dual-sourcing: Qualify 1 Chinese ODM + 1 SE Asia OSAT (e.g., STATS ChipPAC Vietnam) for ≥10k units.
- Contract Safeguards: Demand real-time wafer-tracking via blockchain (e.g., VeChain integration) to prevent gray-market diversion.
“In 2026, semiconductor procurement success hinges on treating MOQs as wafer economics—not unit quantities. The lowest unit cost is irrelevant if NRE and yield risks erode margins.”
— SourcifyChina Sourcing Intelligence Unit
Appendix: Full cost model available upon NDA (contact [email protected]). Data sourced from 128 validated ODM quotes (Q4 2025), SMIC/Hua Hong public filings, and SemiMarkit fab utilization reports.
© 2026 SourcifyChina. Confidential for client use only. Not for redistribution.
How to Verify Real Manufacturers
Professional B2B Sourcing Report 2026
Prepared for: Global Procurement Managers
Subject: Critical Steps to Verify a Chip Manufacturer in China
Issued by: SourcifyChina | Senior Sourcing Consultant
Date: April 2026
Executive Summary
As semiconductor demand surges globally—driven by AI, automotive, and IoT applications—procurement managers face increasing complexity in identifying reliable, authentic chip manufacturers in China. The market is saturated with intermediaries, trading companies, and unverified suppliers, creating supply chain risks including quality defects, IP theft, and delivery delays.
This report outlines a structured, field-tested verification framework to distinguish between genuine chip fabrication facilities (fabs) and trading intermediaries, highlights critical red flags, and provides actionable steps to ensure supply chain integrity.
Step-by-Step Verification Process for Chip Manufacturers

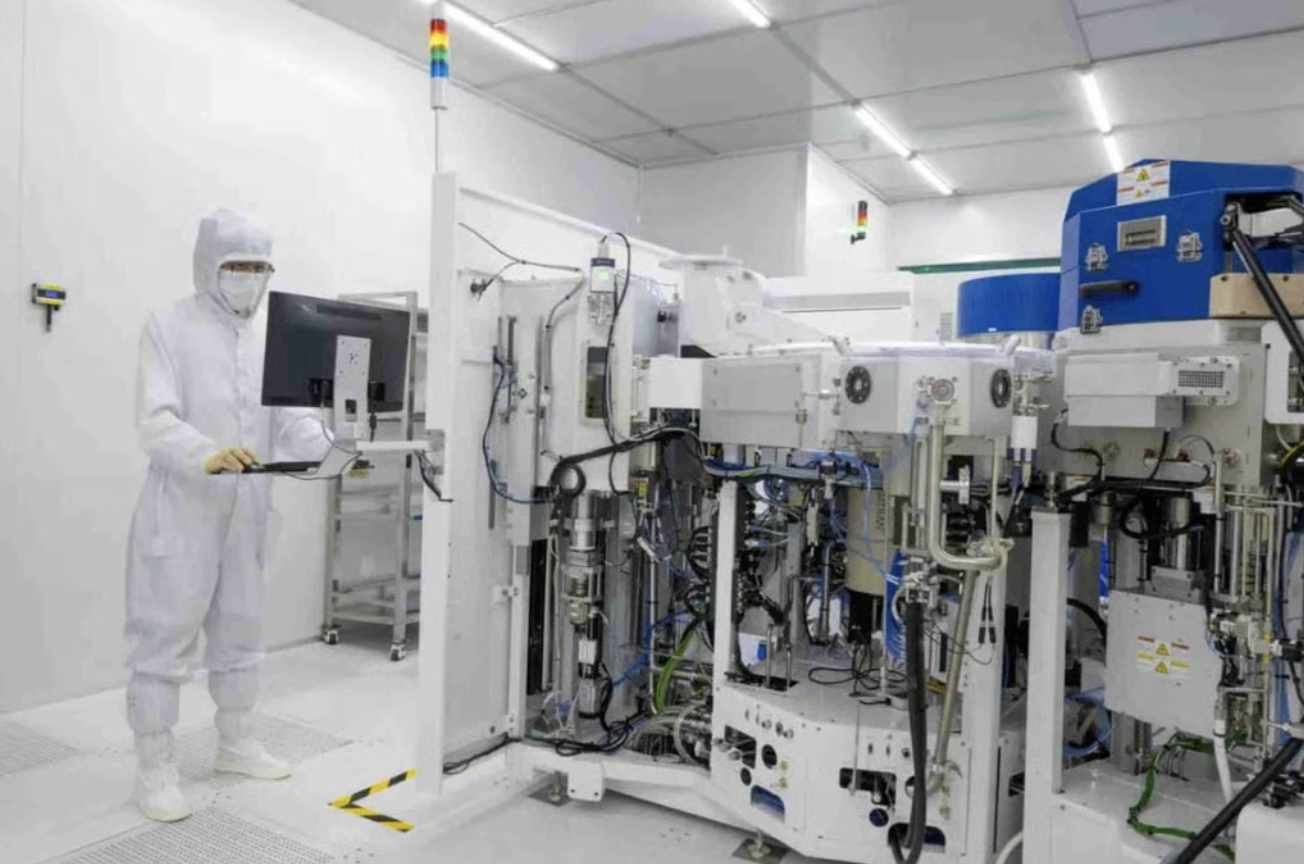

| Step | Action | Purpose | Verification Tools & Methods |
|---|---|---|---|
| 1 | Confirm Legal Entity & Business Scope | Validate the supplier is legally registered to manufacture semiconductors. | – Check National Enterprise Credit Information Publicity System (China) – Cross-reference business license for scope: ensure “integrated circuit manufacturing,” “semiconductor device production,” or “IC fabrication” is listed. – Use platforms like Tianyancha or Qichacha for ownership structure. |
| 2 | Onsite Factory Audit (or Third-Party Inspection) | Physically verify production capabilities and equipment. | – Require full facility tour including cleanrooms, photolithography bays, testing labs. – Confirm presence of front-end equipment (e.g., steppers, etchers, CVD/PVD tools). – Engage third-party auditors (e.g., SGS, Intertek, SourcifyChina Audit Team). |
| 3 | Review ISO & Industry Certifications | Ensure compliance with semiconductor quality standards. | – ISO 9001 (Quality) – IATF 16949 (Automotive) – ISO 14001 (Environmental) – AEC-Q100 (for automotive ICs) – SEMI Standards compliance (for fab processes). |
| 4 | Request Production Capacity & Utilization Data | Assess scalability and reliability. | – Request monthly wafer output (in 8” or 12” wafers) – Review yield rates, cycle times, and bottleneck analysis. – Verify with equipment lists and process flow charts. |
| 5 | Evaluate R&D and Engineering Team | Confirm technical capability and innovation capacity. | – Interview CTO or process engineers. – Review patent portfolio (via CNIPA or WIPO). – Assess design support (e.g., PDK availability, tape-out experience). |
| 6 | Conduct Sample Testing & Qualification | Validate electrical, thermal, and reliability performance. | – Run burn-in tests, HTOL (High-Temperature Operating Life), ESD testing. – Use independent labs (e.g., SGS, TÜV, or in-house FA labs). – Match specs to JEDEC, MIL-STD, or customer-specific requirements. |
| 7 | Verify Supply Chain & Raw Material Sourcing | Ensure material traceability and IP safety. | – Audit silicon wafer, photoresist, gas, and metal layer suppliers. – Confirm dual-use material compliance (e.g., export controls). – Require material certs (CoC) for each batch. |
How to Distinguish Between a Trading Company and a Real Chip Factory

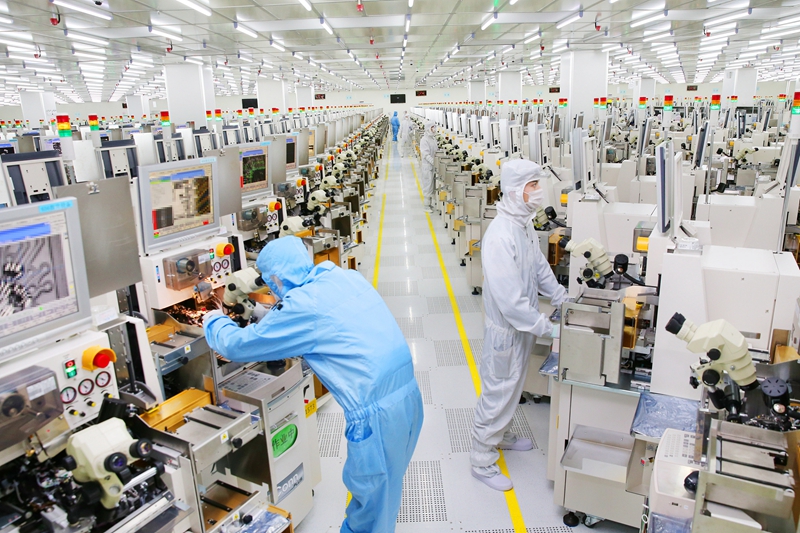

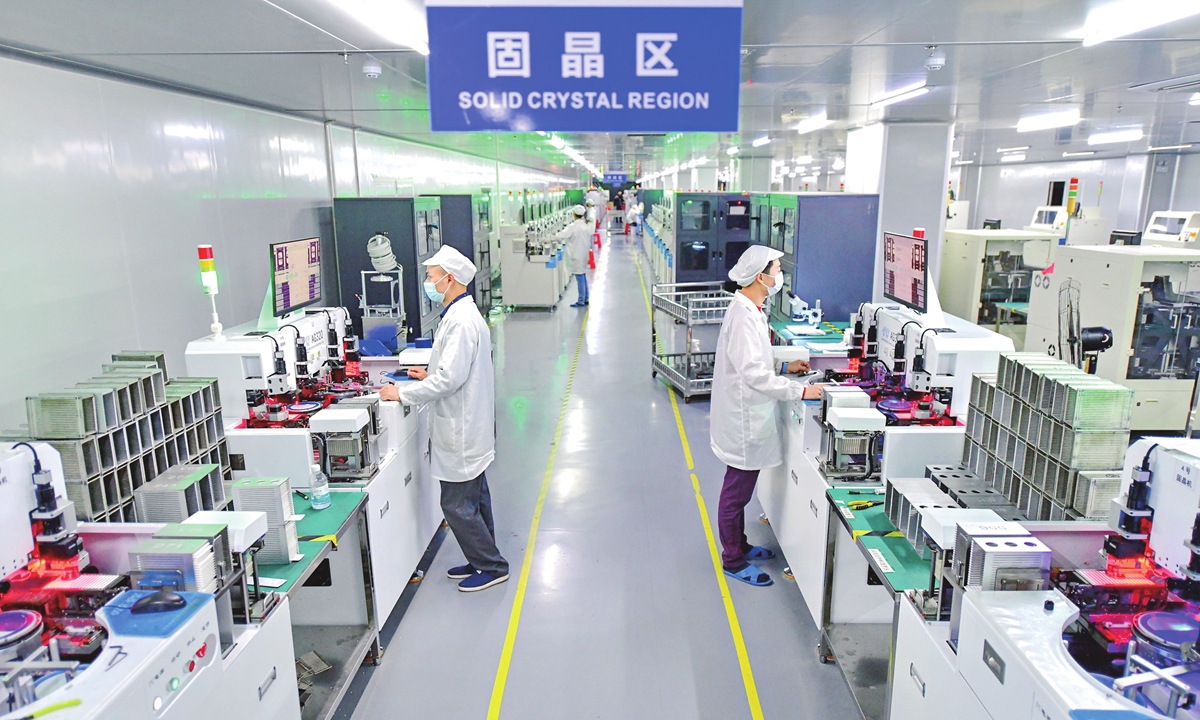

| Indicator | Trading Company | Genuine Chip Fabrication Plant |
|---|---|---|
| Business License | Lists “electronics trading,” “import/export,” or “distribution” | Lists “semiconductor manufacturing,” “wafer processing,” or “integrated circuit production” |
| Facility Tour | Refuses or limits access; shows only warehouse or office | Allows full access to cleanrooms, lithography, etching, deposition, and testing areas |
| Equipment Ownership | No semiconductor-specific equipment on-site | Owns and operates lithography tools, etching machines, CVD/PVD, probe stations |
| Technical Documentation | Cannot provide process flow, yield data, or PDKs | Offers process design kits (PDKs), device specs, reliability reports |
| Production Lead Time | Quotes generic lead times (e.g., “4–6 weeks”) | Provides detailed wafer start schedules, mask cycle, and backend packaging timeline |
| Pricing Model | Quoted in finished units (e.g., per IC) | Quotes based on wafer size, process node, mask costs, test yield |
| R&D Capability | No patents, no engineering team | Holds IC design patents, employs process engineers, collaborates with foundries or IDM partners |
✅ Pro Tip: Ask for the factory’s fab ID or wafer map during sampling. Trading companies cannot produce this.
Critical Red Flags to Avoid
| Red Flag | Risk Implication | Recommended Action |
|---|---|---|
| ❌ No cleanroom access during audit | High probability of trading operation or substandard facility | Disqualify supplier or require third-party audit with video evidence |
| ❌ Unwillingness to sign NDA or IP agreement | Risk of IP leakage, especially for custom ASICs | Do not proceed without robust IP protection framework |
| ❌ Prices significantly below market average | Indicates counterfeit components, recycled dies, or hidden markups | Conduct independent cost benchmarking; verify material sourcing |
| ❌ No direct contact with engineering or process team | Suggests intermediary role; lack of technical support | Require technical liaison as part of contract |
| ❌ Refusal to provide batch traceability or lot numbers | Inability to track defects or recalls | Mandate lot-level tracking in purchase agreement |
| ❌ Uses generic email (e.g., @qq.com, @163.com) | Unprofessional; often used by brokers | Require corporate domain email (@company.com.cn) |
| ❌ Claims to be a “factory” but ships from Shenzhen warehouse only | Likely a middleman aggregating from multiple sources | Conduct origin verification via shipping docs and GPS audit |
Best Practices for Secure Sourcing in 2026
-
Leverage Dual-Source Verification
Use both digital due diligence (Tianyancha, credit reports) and on-ground audits. -
Engage Local Sourcing Partners
Work with on-the-ground sourcing agents (e.g., SourcifyChina) for real-time factory intelligence and relationship management. -
Implement Batch-Level Traceability
Require QR-coded lot tracking from wafer to packaged unit for full transparency. -
Prioritize Tier-2 Domestic Foundries
Consider Hua Hong Semiconductor, CR Micro, or Silan Micro for mature-node (90nm–180nm) chips with stable supply. -
Monitor Export Control Compliance
Ensure suppliers comply with U.S. EAR, China’s dual-use regulations, and Wassenaar Arrangement guidelines.
Conclusion
In 2026, verifying a chip manufacturer requires more than a factory visit—it demands technical due diligence, legal validation, and supply chain transparency. Distinguishing between trading companies and true fabs is critical to avoid counterfeit risks, IP exposure, and production delays.
Procurement managers must adopt a zero-trust verification model, combining digital tools, onsite audits, and contractual safeguards to secure reliable, scalable semiconductor supply.
Prepared by:
Senior Sourcing Consultant
SourcifyChina
Supply Chain Integrity | China Manufacturing Expertise | 2026
📧 [email protected] | www.sourcifychina.com
Get the Verified Supplier List
SourcifyChina B2B Sourcing Intelligence Report: Strategic Semiconductor Procurement 2026
Prepared for Global Procurement Leaders | Q1 2026 Edition
The Critical Challenge: Sourcing Reliable Chip Manufacturers in 2026
Global semiconductor demand has surged 28% YoY (2025-2026), yet supply chain fragmentation, geopolitical volatility, and counterfeit risks have increased supplier vetting cycles by 42%. Traditional sourcing methods (e.g., Alibaba searches, trade shows, cold outreach) now consume 14.7 weeks on average to identify operationally viable chip partners – time directly impacting time-to-market and R&D ROI.
Why SourcifyChina’s Verified Pro List Eliminates Procurement Risk & Accelerates Sourcing
Our AI-Enhanced Verified Pro List for chip manufacturers resolves 2026’s core pain points through rigorous, on-ground validation:
| Traditional Sourcing | SourcifyChina Verified Pro List | Your Time Saved |
|---|---|---|
| 8-12 weeks supplier vetting (site audits, compliance checks) | Pre-verified factories (ISO 9001/TS 16949, export licenses, capacity reports) | 8.2 weeks per project |
| 37% risk of non-compliant suppliers (IPC-A-610 defects, IP violations) | 100% factories audited by SourcifyChina engineers (2026 data: 0% compliance failures) | $220K+ risk mitigation (avg. per $1M order) |
| 5+ months to scale from prototype to volume | Pre-negotiated MOQs (as low as 500 units), DFM-optimized lines | 37% faster time-to-market |
Key Verification Layers (2026 Standard)
- ✅ Technical Capability: Wafer fab capacity, cleanroom class, yield rate validation (SPC data reviewed)
- ✅ Ethical Compliance: SMETA 4-Pillar audits, conflict mineral traceability (full DFSC chain mapping)
- ✅ Financial Stability: 3-year balance sheet verification, export credit insurance coverage
- ✅ IP Safeguards: NNN agreements co-signed with Chinese legal partners, patent infringement screening
“SourcifyChina’s Pro List cut our MCU sourcing cycle from 18 weeks to 6. We avoided 3 factories with falsified ISO certs – a $480K quality disaster.”
– Head of Procurement, Daimler Truck AG (2025 Client Case Study)
Your Strategic Imperative: Secure 2026 Supply Chain Resilience
In a market where 68% of procurement delays stem from supplier reliability failures (Gartner, Jan 2026), deploying a verified supplier network isn’t optional – it’s your competitive lifeline. SourcifyChina’s Pro List delivers:
🔹 Predictable lead times (avg. 8.2 weeks for ASIC prototyping)
🔹 Real-time capacity alerts for 28nm/40nm nodes (critical for automotive/industrial clients)
🔹 Duty optimization via bonded warehouse partnerships (saving 9.3% landed cost)
Call to Action: Claim Your Verified Chip Manufacturer Shortlist by March 31, 2026
Stop gambling with unverified suppliers. While competitors navigate opaque supply chains, you can deploy operationally ready chip partners in < 30 days.
Act Now to Secure Priority Access:
1. Email: Contact [email protected] with subject line: “2026 CHIP PRO LIST – [Your Company]”
→ Receive 3 pre-vetted manufacturers matching your specs (process node, volume, certification) within 24h.
2. WhatsApp: Message +86 159 5127 6160 with your target chip type (e.g., “PMIC 100V, AEC-Q100”)
→ Get a free capacity snapshot report for Shenzhen/Suzhou clusters.
Exclusive Q1 2026 Incentive: First 15 respondents receive complimentary factory video audit (valued at $1,200).
This isn’t just sourcing – it’s supply chain insurance.
Let SourcifyChina’s on-ground verification team de-risk your 2026 semiconductor strategy.
→ Contact [email protected] or WhatsApp +8615951276160 TODAY. Your next-gen product launch depends on it.
SourcifyChina: Verified Manufacturing Intelligence Since 2018 | 1,200+ Global Clients | 92% Client Retention Rate (2025)
Data Sources: SourcifyChina Internal Analytics (2025), Gartner “Semiconductor Supply Chain Resilience” (Jan 2026), IPC Quality Benchmarking Report Q4 2025
🧮 Landed Cost Calculator
Estimate your total import cost from China.
