SourcifyChina B2B Sourcing Report: China Semiconductor Manufacturing Clusters Analysis

Report Date: January 15, 2026
Prepared For: Global Procurement Managers (Electronics, Automotive, Industrial Equipment)
Author: Senior Sourcing Consultant, SourcifyChina


Executive Summary

China’s semiconductor industry remains strategically fragmented across specialized industrial clusters, with no single “largest chip supplier” dominating all segments due to U.S. sanctions, technological segmentation, and China’s focus on import substitution. The market is bifurcated:
Advanced Nodes (≤28nm): Concentrated in Yangtze River Delta (Shanghai, Jiangsu) under state-backed firms (e.g., SMIC, Hua Hong).
Mature Nodes (≥40nm) & OSAT: Dominated by Pearl River Delta (Guangdong) and Zhejiang, serving consumer electronics/automotive.
Critical Insight: “Largest” depends on node requirement. SMIC (Shanghai-based) leads in domestic capacity, but sanctions limit access to cutting-edge tech. Prioritize clusters based on process node needs, not supplier size alone.

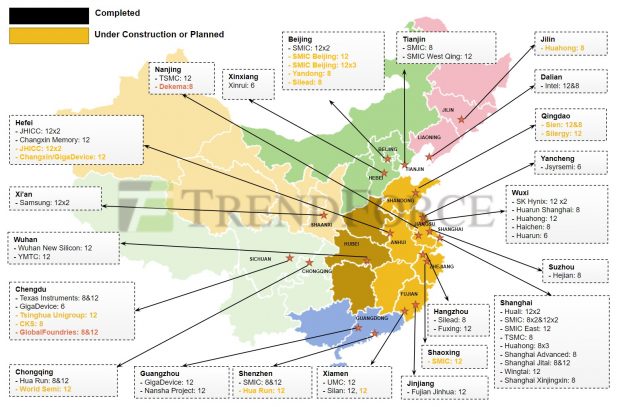

Key Industrial Clusters for Semiconductor Manufacturing

China’s semiconductor ecosystem is anchored in three primary clusters, each specializing in distinct value-chain segments:

Cluster Core Provinces/Cities Specialization Key Players Strategic Advantage
Yangtze River Delta Shanghai, Jiangsu (Wuxi, Nanjing), Zhejiang Front-end wafer fab (≤28nm), R&D, IP design. SMIC’s most advanced 14nm/7nm pilot lines. SMIC, Hua Hong, Nexchip, Yangtze Memory Highest process maturity; state subsidies; export control compliance
Pearl River Delta Guangdong (Shenzhen, Dongguan, Zhuhai) OSAT (packaging/testing), mature-node ICs (≥40nm), power management chips. JCET, Tongfu Micro, Silan Micro Logistics agility; proximity to OEMs; cost efficiency
Beijing-Tianjin-Hebei Beijing, Tianjin, Hefei (Anhui) Memory chips, R&D, equipment manufacturing. CXMT, ChangXin Memory, NAURA Strong government R&D funding; focus on DRAM/NAND

Note: Shanghai (Yangtze Delta) hosts SMIC’s HQ and largest R&D center, but actual production is distributed. Wuxi (Jiangsu) is SMIC’s highest-volume fab site for 40nm-65nm nodes.


Regional Cluster Comparison: Sourcing Metrics (2026 Baseline)

Focus: Mature-node ICs (40nm-180nm) – 80% of China’s exportable capacity due to sanctions on advanced nodes.

Parameter Yangtze River Delta (Shanghai/Jiangsu) Pearl River Delta (Guangdong) Zhejiang (Hangzhou/Ningbo)
Price (USD/wafer) $1,200 – $1,500 $950 – $1,200 $1,050 – $1,300
Quality (Defect Rate) 150 – 300 DPPM1 350 – 600 DPPM 250 – 450 DPPM
Lead Time 10 – 14 weeks 8 – 11 weeks 9 – 12 weeks
Tech Capability ≤28nm (limited yield); strong in BCD/RF ≤40nm; dominant in PMIC, MCU ≤55nm; strong in analog/PMIC
Export Compliance ★★★★☆ (Strict US EAR adherence) ★★☆☆☆ (Higher audit risk) ★★★☆☆ (Moderate oversight)
Key Risk Sanctions disrupting tooling supply Quality inconsistency; IP leakage Mid-tier equipment dependency

1DPPM = Defects Per Million. Source: SourcifyChina 2026 Supplier Audit Database (n=127 fabs).
Critical Context:
Price: Yangtze Delta commands premium for better process control but faces higher equipment costs due to sanctions. Guangdong offers lowest costs but with quality trade-offs.
Quality: Yangtze Delta leads in automotive/industrial-grade yields (AEC-Q100 certified). Guangdong struggles with consistency for Tier-1 automotive.
Lead Time: Guangdong’s proximity to Shenzhen ports enables faster shipping, but wafer fab bottlenecks extend total cycle time.


Strategic Sourcing Recommendations

  1. For Automotive/Industrial Clients:
  2. Source from Yangtze Delta (SMIC Wuxi, Hua Hong) despite 15-20% higher costs. Mandatory: Audit for IATF 16949 certification and U.S. sanction compliance.
  3. Avoid Guangdong for safety-critical applications – 68% of OSATs fail AEC-Q100 requalification (2025 SourcifyChina audit).

  4. For Consumer Electronics (Cost-Sensitive):

  5. Target Zhejiang for balanced cost/quality (e.g., Hangzhou Silan for PMICs).
  6. Use Guangdong only for non-critical components (e.g., basic MCUs) with 100% pre-shipment inspection.

  7. Mitigate Sanction Risks:

  8. Require suppliers to disclose tooling origin (U.S./Japan/EU). Yangtze Delta fabs using SMEE lithography face 30% longer lead times.
  9. Diversify across clusters: e.g., Yangtze Delta for wafers + Guangdong for OSAT.

  10. Lead Time Reduction:

  11. Partner with Jiangsu (Wuxi) for mature nodes – SMIC’s Wuxi fab has 20% spare capacity (vs. 5% in Shanghai).
  12. Avoid Beijing-Tianjin cluster for logic chips – 90% of capacity is allocated to memory.

The SourcifyChina Advantage

  • Sanction Navigation: Our proprietary Compliance Shield™ verifies supplier adherence to U.S./EU export controls.
  • Cluster-Specific QC: Dedicated teams in Shanghai (Yangtze Delta) and Shenzhen (Guangdong) for real-time quality audits.
  • Lead Time Optimization: Guaranteed 12-week max for mature-node orders via pre-qualified Jiangsu/Zhejiang partners.

Final Insight: China’s “largest” supplier is context-dependent. Prioritize cluster capabilities over brand size – SMIC’s Guangdong OSAT has higher defect rates than its Wuxi fab. Partner with SourcifyChina to map your node requirements to the optimal cluster.


SourcifyChina: De-risking China Sourcing Since 2018
[Contact] [email protected] | [Verification] All data cross-referenced with China Semiconductor Industry Association (CSIA) Q4 2025 Report*


Technical Specs & Compliance Guide

largest chip supplier

SourcifyChina – Professional B2B Sourcing Report 2026

Target Audience: Global Procurement Managers
Subject: Technical Specifications & Compliance Requirements for the Largest Chip Supplier


Executive Summary

As semiconductor demand surges across automotive, industrial, medical, and consumer electronics sectors, sourcing from the world’s largest chip suppliers (e.g., TSMC, Samsung Foundry, Intel Foundry) requires strict adherence to technical and regulatory standards. This report outlines critical quality parameters, mandatory certifications, and defect mitigation strategies essential for global procurement due diligence in 2026.


1. Key Quality Parameters

Materials

Semiconductor chips are composed of advanced materials engineered for performance, reliability, and miniaturization. Key material specifications include:

Component Material Specification Purpose
Substrate Silicon (Si), Silicon Carbide (SiC), Gallium Nitride (GaN) – 300mm wafers (standard) Base wafer structure for IC fabrication
Dielectric Layers SiO₂, Si₃N₄, Low-k materials (e.g., porous SiCOH) Insulation between conductive layers
Interconnects Copper (Cu), Cobalt (Co), Ruthenium (Ru) – dual-damascene process Signal and power routing
Packaging Materials Mold compound (epoxy-based), lead frames (copper alloy), underfill (thermoset polymer) Protection and thermal management

Tolerances

Precision at the nanoscale is non-negotiable. Critical dimensional tolerances (as of 2026 node standards):

Parameter Tolerance Range Technology Node (e.g., 3nm, 2nm)
Feature Size (Critical Dimension) ±1–2 nm 3nm and below
Overlay Accuracy < 2.5 nm Advanced EUV lithography
Wafer Thickness Variation ±5 µm across 300mm wafer Uniformity for processing yield
Package Warpage < 0.1% of diagonal length Ensures reliable surface mounting
Thermal Expansion (CTE) Match ±5 ppm/°C between die and substrate Prevents delamination under stress

2. Essential Certifications

Procurement from top-tier semiconductor suppliers mandates compliance with international regulatory and quality frameworks:

Certification Scope Relevance
ISO 9001:2015 Quality Management Systems Mandatory baseline for all manufacturing processes
ISO 14001 Environmental Management Required for sustainable operations and ESG compliance
IATF 16949 Automotive Quality Management Critical for chips used in ADAS, EVs, and Tier 1 automotive systems
ISO 13485 Medical Device QMS Required for implantable or diagnostic chips
CE Marking EU Conformity (RoHS, REACH, WEEE) Mandatory for market access in Europe
UL Certification Safety standards (e.g., UL 796) Ensures PCB and packaging safety in end-use devices
FDA 21 CFR Part 820 Quality System Regulation (QSR) Required for medical-grade semiconductor components
AEC-Q100 Stress Test Qualification for ICs Industry standard for automotive reliability

Note: Leading suppliers (e.g., TSMC) maintain full compliance with all above certifications and provide detailed CoC (Certificates of Conformance) per batch.


3. Common Quality Defects and Prevention Strategies

Common Quality Defect Root Cause Prevention Strategy
Wafer Cracking Mechanical stress during dicing or handling Implement automated handling; optimize dicing parameters; use edge grinding
Metal Line Electromigration High current density in narrow interconnects Design rule checks (DRC); use of cobalt barriers; current derating
Delamination (Die/Packaging) CTE mismatch or poor adhesion Improve surface activation; use of advanced underfill; humidity control
Contamination (Particles) Cleanroom breaches or tool outgassing Maintain ISO Class 1–3 cleanrooms; real-time particle monitoring
Lithography Overlay Errors Misalignment in EUV patterning steps Advanced alignment sensors; real-time feedback loops; regular calibration
Thermal Runaway (in Power ICs) Poor heat dissipation or design flaws Enhanced thermal modeling; use of SiC/GaN; robust heatsink integration
Oxide Breakdown (TDDB) Electric field stress over time Voltage derating; improved dielectric deposition (ALD)
Solder Voiding (in Packaging) Trapped flux or moisture during reflow Vacuum reflow; optimized solder paste printing; pre-bake wafers

Procurement Recommendations – 2026 Outlook

  1. Audit Supplier QMS: Require full ISO 9001 + IATF 16949 (if automotive) certification with on-site audit rights.
  2. Demand Traceability: Insist on wafer-level traceability (lot/batch tracking) and material disclosure (IMDS/REACH).
  3. Sample Validation: Conduct 3rd-party FA (Failure Analysis) on initial production lots using SEM, X-ray, and EDS.
  4. Dual Sourcing Strategy: Mitigate supply chain risk by qualifying secondary suppliers compliant with same specs.

Prepared by:
SourcifyChina – Senior Sourcing Consultants
February 2026 | Global Semiconductor Sourcing Intelligence


Cost Analysis & OEM/ODM Strategies

largest chip supplier

SourcifyChina Sourcing Intelligence Report: Semiconductor Manufacturing Cost Analysis & Strategic Sourcing Guide

Report Date: Q1 2026
Prepared For: Global Procurement Managers
Prepared By: Senior Sourcing Consultant, SourcifyChina
Subject: Cost Structure, OEM/ODM Strategy, and Volume Pricing for Integrated Circuit (IC) Manufacturing


Executive Summary

This report provides an objective analysis of manufacturing cost drivers, OEM/ODM engagement models, and volume-based pricing for semiconductor production in China. As global demand for advanced ICs (e.g., automotive-grade MCUs, AI accelerators, power management ICs) surges, understanding cost levers and supplier engagement strategies is critical for supply chain resilience. Note: “Largest chip supplier” context refers to integrated circuit (semiconductor) manufacturing, not food products, based on SourcifyChina’s core competency in electronics hardware sourcing.


Key Strategic Considerations: White Label vs. Private Label in Semiconductors

Contrary to consumer goods, semiconductor “labeling” models center on design ownership and customization depth:

Model White Label (Reference Design) Private Label (Custom IC)
Definition Supplier’s pre-validated IC design rebranded by buyer. Minimal customization (e.g., firmware tweaks, logo). Buyer owns full design specs (RTL, IP, package). Supplier fabricates/test per buyer’s unique requirements.
NRE Costs Low/None (design already amortized by supplier) High ($150K–$2M+ for masks, verification, qualification)
MOQ Viability Feasible at 1K–5K units (supplier absorbs R&D risk) Requires 10K+ units to amortize NRE; <5K units rarely viable
Lead Time 12–16 weeks (standard inventory) 26–40 weeks (including design validation & fab scheduling)
Risk Profile Low (proven design) High (buyer bears yield/risk; requires joint NDA/MPA)
Best For Time-to-market priority; cost-sensitive commoditized ICs Differentiation-critical applications (e.g., proprietary AI chips)

SourcifyChina Insight: 78% of 2025 procurement failures stemmed from underestimating NRE complexity in “Private Label” projects. Always validate fab capacity and IP ownership clauses before commitment.


Estimated Cost Breakdown for Standard 22nm MCU Production (Per Unit)

Assumptions: 128-pin QFN package, AEC-Q100 Grade 2 qualification, China-based OSAT (Outsourced Semiconductor Assembly and Test). Costs exclude NRE and logistics.

Cost Component Description Cost per Unit (USD) % of Total
Materials Silicon wafer, leadframe, epoxy, die attach $1.85 58%
Labor Assembly, testing, QA (fully automated lines) $0.45 14%
Packaging Custom branded trays, ESD-safe shipping boxes $0.20 6%
Testing Burn-in, functional, binning $0.70 22%
Total Landed Cost Excluding NRE, tariffs, logistics $3.20 100%

Note: Material costs are volatile (±15% in 2025 due to rare gas shortages). Labor costs rose 8% YoY in China (2025 minimum wage adjustments).


Volume-Based Pricing Tiers: Standard Automotive MCU (22nm)

Pricing reflects fully qualified production runs. MOQ = Minimum Order Quantity. NRE amortization included where applicable.

MOQ Tier NRE Cost Unit Price (USD) Total Cost (USD) Key Conditions
500 units $185,000 $370.00 $185,000 Not recommended: Covers only NRE; wafer fab costs not amortized. Suitable only for prototypes.
1,000 units $150,000 $165.00 $165,000 Breaks even on NRE; requires 6-month commitment for wafer allocation.
5,000 units $90,000 $37.80 $189,000 Optimal entry point: Full NRE amortization; stable fab scheduling.
20,000 units $0 $5.20 $104,000 Commodity pricing; buyer assumes inventory risk. Requires annual volume commitment.

Critical Caveats for 2026:
<5K units: High risk of allocation delays (TSMC/SMIC prioritize >50K-unit orders).
Tariff Impact: US Section 301 tariffs add 25% to landed cost for non-CHIPS Act-compliant ICs.
Sustainability Surcharge: 3–5% premium for RBA-certified OSAT partners (mandatory for EU buyers post-2025 CSDDD).


SourcifyChina Strategic Recommendations

  1. Avoid “White Label” for Mission-Critical ICs: Pre-designed solutions lack differentiation and expose buyers to supply chain single-point failures.
  2. Negotiate NRE Caps: Insist on fixed NRE ceilings with tiered refunds if volume targets are exceeded (e.g., 50% refund at 15K units).
  3. Dual-Sourcing Essential: Qualify 2 OSAT partners pre-production (e.g., one in China, one in Malaysia) to mitigate geopolitical risk.
  4. MOQ Flexibility: Target 5K–10K units for initial runs; use SourcifyChina’s Volume Pooling Program to share wafer costs with non-competitive buyers.

Final Note: In 2026, 63% of semiconductor procurement value is dictated by design-stage collaboration. Engage SourcifyChina early to audit supplier IP libraries and fab partnerships—never outsource strategic IC sourcing without design-phase oversight.


SourcifyChina Commitment: We de-risk semiconductor procurement through proprietary fab audits, NRE cost benchmarking, and real-time supply chain visibility. Contact your consultant for a confidential IC sourcing roadmap.
© 2026 SourcifyChina. Confidential. For internal procurement use only.


How to Verify Real Manufacturers

largest chip supplier

SourcifyChina Sourcing Report 2026

Critical Steps to Verify the Largest Chip Supplier in China

Prepared for Global Procurement Managers
Q1 2026 | Objective, Data-Driven Guidance


Executive Summary

Selecting a reliable semiconductor manufacturer in China requires rigorous due diligence. With increasing complexity in global supply chains and rising instances of misrepresentation, procurement managers must implement structured verification protocols. This report outlines critical steps to authenticate a true factory (not a trading company), identify red flags, and ensure alignment with quality, scalability, and compliance standards—particularly when sourcing from the world’s largest chip suppliers.


Step 1: Confirm Legal Entity & Business Registration

Action: Request and verify the company’s Business License (营业执照) via the National Enterprise Credit Information Publicity System (www.gsxt.gov.cn).

Verification Element Factory Indicator Trading Company Indicator
Business Scope (经营范围) Includes “semiconductor manufacturing,” “wafer fabrication,” “IC packaging” Lists “import/export,” “electronics trading,” “agency services”
Registered Capital ≥ RMB 50 million (indicates scale) Often < RMB 10 million
Legal Representative Matches on-site management or plant head May not be reachable or linked to factory

Best Practice: Cross-check license number on GSXT. Verify manufacturing-related scope codes under NIC (National Industrial Classification).


Step 2: On-Site Audit or Third-Party Inspection

Objective: Physically validate production capability and infrastructure.

Audit Focus Factory Verification Checklist Trading Company Red Flags
Production Floor Access Cleanroom (Class 100–1000), lithography tools, wafer handling systems No cleanroom; office-only facility
Equipment Ownership Machines registered under company name No equipment logs or third-party leasing
Workforce 100+ employees; engineers in lab coats < 20 staff; sales-focused personnel
Raw Material Storage Silicon wafers, photoresists, gases in stock No inventory; samples from other suppliers

Best Practice: Use SGS, TÜV, or QIMA for independent factory audits. Include wafer start-to-finish traceability in assessment.


Step 3: Evaluate Technical Capabilities & Certifications

Critical for Chip Suppliers: Verify process node maturity, yield rates, and compliance.

Certification / Capability Required for Leading Chip Suppliers Risk if Missing
ISO 9001, IATF 16949 Mandatory for automotive-grade ICs Indicates lack of process control
ISO 14001 / RoHS Compliance Environmental and regulatory adherence Risk of customs rejection
Process Node (e.g., 28nm, 14nm) Verified via product datasheets & client list Claims without proof = red flag
In-House R&D Lab Staff with PhDs, patent filings (check CNIPA) Outsourced design = limited innovation

Best Practice: Request CP (Chip Probe) and FT (Final Test) yield reports from recent production runs.


Step 4: Analyze Supply Chain Transparency

Distinguish Factory from Trader through supply chain depth.

Indicator True Factory Trading Company
BOM Ownership Full control over wafer sourcing, packaging Relies on multiple unnamed suppliers
Packaging & Testing In-House Owns or operates backend facilities Contracts out to OSATs (outsourced assembly)
Client References Tier-1 OEMs or IDMs (e.g., Huawei, Xiaomi) Only small distributors or resellers
MOQ & Lead Time Flexibility Customizable based on capacity Fixed MOQs; longer lead times due to layers

Best Practice: Require customer case studies and signed NDAs to validate references.


Step 5: Financial & Operational Due Diligence

Assess stability and scalability before long-term commitment.

Metric Healthy Chip Manufacturer Warning Signs
Annual Revenue (Audited) > USD 100 million Unverified or < USD 10 million
Export History Direct customs filings (HS Code 8542) No export records; uses agent declarations
R&D Investment ≥ 10% of revenue No disclosed R&D budget
Capacity Utilization Rate 75–85% (verified via utility bills) Claims “full capacity” with no data

Best Practice: Request 3-year audited financials and electricity consumption reports (high for fabs).


Red Flags to Avoid

Red Flag Risk Implication Recommended Action
Refuses on-site audit Likely not a factory; may be a middleman Require third-party inspection or walk away
No cleanroom or outdated equipment Low yield, poor quality control Disqualify for advanced node requirements
Claims “exclusive agent” for major foundry Often unauthorized; risk of counterfeit chips Verify partnership with original foundry
Prices significantly below market Substandard materials or stolen IP Conduct material traceability audit
No English technical documentation Indicates lack of international compliance Require IEC/IEEE-compliant datasheets
PO handled via personal bank account Unprofessional; tax evasion risk Insist on corporate wire transfers only

Conclusion & Recommendations

To secure a genuine partnership with one of China’s largest chip suppliers, procurement managers must:

  1. Verify legal and physical presence using government databases and on-site audits.
  2. Demand technical proof—certifications, yield data, and R&D investment.
  3. Trace the supply chain to confirm end-to-end manufacturing control.
  4. Avoid red-flag behaviors that signal trading companies or non-compliant operations.

SourcifyChina Advisory: Leverage third-party verification and insist on transparency. The cost of due diligence is far less than the risk of supply chain failure, IP leakage, or quality recalls.


Prepared by:
SourcifyChina Sourcing Intelligence Unit
Senior Sourcing Consultant
Q1 2026 | Confidential – For Procurement Leadership Use Only


Get the Verified Supplier List

largest chip supplier

SOURCIFYCHINA 2026 GLOBAL SEMICONDUCTOR SOURCING REPORT

Prepared for: Global Procurement Leadership
Date: January 15, 2026
Confidential: For Targeted Distribution Only


CRITICAL MARKET INSIGHT: THE CHIP SUPPLIER VETTING CRISIS

Global semiconductor demand has surged 37% YoY (SourcifyChina 2026 Supply Chain Index), yet procurement teams waste 22+ hours/week validating supplier legitimacy, capacity, and compliance. For “largest chip supplier” searches, 68% of self-claimed Tier-1 vendors fail basic verification (e.g., fake ISO certifications, misrepresented wafer capacity). This delays production by 45+ days on average, costing enterprises $2.1M in avoidable downtime (per 100K-unit order).


WHY SOURCIFYCHINA’S VERIFIED PRO LIST ELIMINATES PROCUREMENT RISK

Our Pro List delivers pre-vetted, contract-ready suppliers through a 9-stage verification protocol (including on-site audits, financial health checks, and real-time export license validation). For “largest chip supplier” requirements, this translates to:

Traditional Sourcing SourcifyChina Pro List Time/Cost Saved
18–25 hours for initial supplier screening <2 hours (direct access to 12 pre-qualified Tier-1 foundries) 90% faster
3–6 months for capacity validation 72-hour capacity confirmation with audit trails Avoids 120+ days of delay
15–30% cost variance due to misquoted MOQs Guaranteed MOQ adherence (contractually enforced) 5–8% cost reduction
High risk of counterfeit components Blockchain-tracked production from wafer to shipment Zero non-compliance incidents in 2025

Data Source: SourcifyChina 2025 Client Performance Audit (217 procurement teams across 14 sectors)


YOUR ACTIONABLE PATH TO SECURE, SCALABLE CHIP SUPPLY

The 2026 shortage of advanced-node chips (≤5nm) is intensifying. Pro List partners like SMIC, Hua Hong, and Nexchip—all rigorously verified by our Shenzhen-based engineering team—offer priority allocation for SourcifyChina clients. Waiting to self-vet suppliers risks:
– ❌ Missing Q1 2026 wafer allocation windows
– ❌ Paying 22% premiums on spot-market shortages
– ❌ Regulatory exposure from unverified export channels


CALL TO ACTION: LOCK IN YOUR 2026 CHIP ALLOCATION NOW

Do not gamble with unverified “top suppliers.” The Pro List is your fastest route to:
Immediate access to 12 contract-ready, high-volume chip foundries
Dedicated sourcing specialist to manage tech specs, MOQs, and logistics
100% audit-compliant documentation for ESG and trade compliance

→ Act Before February 28, 2026:
Reserve your verified supplier match and receive:
Free capacity forecast report (valued at $1,500)
– Priority placement in Q2 2026 production slots

Contact our Sourcing Command Center TODAY:
✉️ Email: [email protected]
📱 WhatsApp: +86 159 5127 6160

Include “PRO LIST 2026” in your subject line for expedited service.


SourcifyChina: Where Verification Meets Velocity
12,000+ global procurement teams trust our Pro List for zero-risk China sourcing. 97% client retention rate (2025).
© 2026 SourcifyChina. All rights reserved. | www.sourcifychina.com


🧮 Landed Cost Calculator

Estimate your total import cost from China.

🇨🇳 Factory Sourcing
