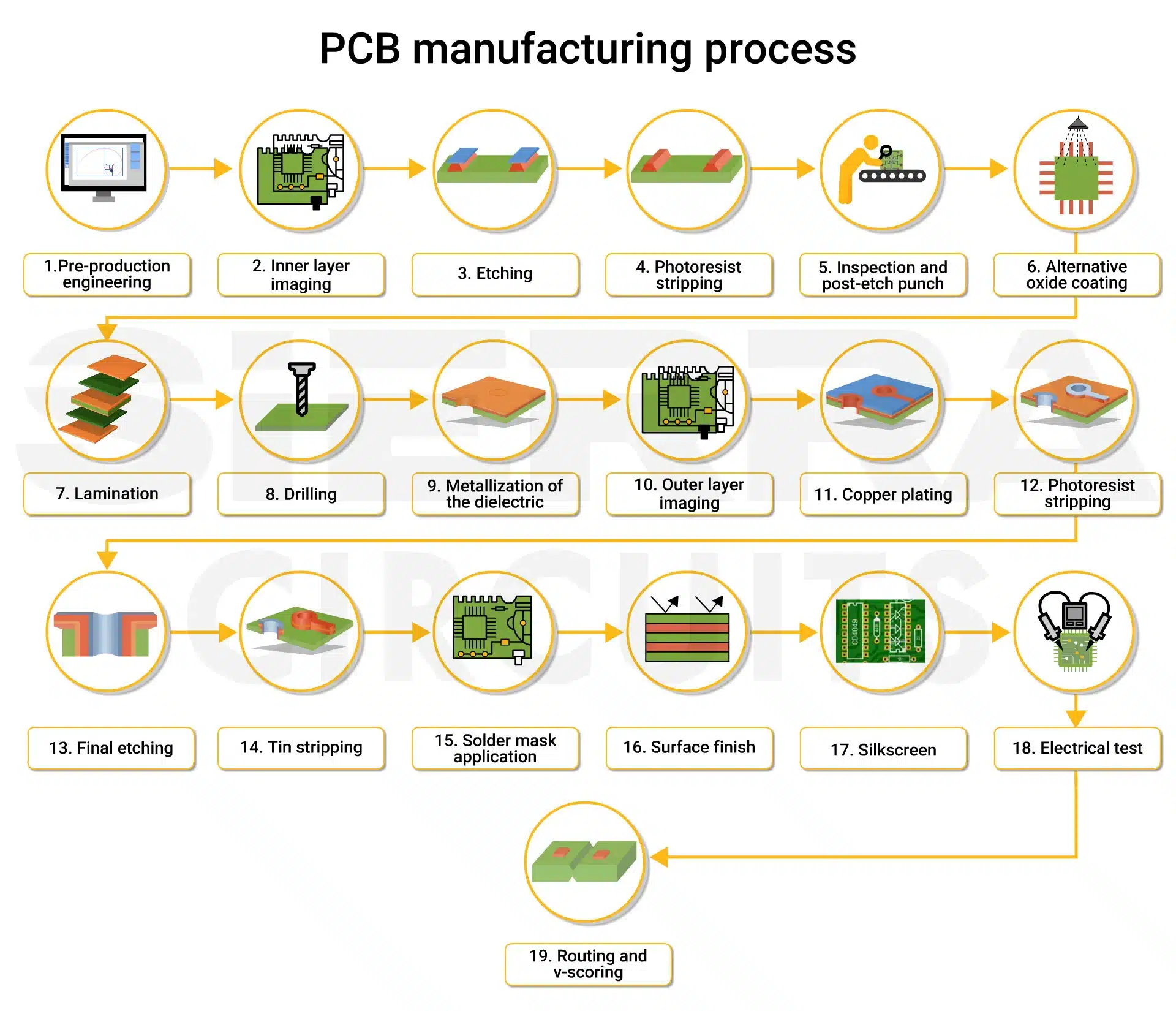

2026 Market Trends for PCB Fabrication

Rising Demand from Advanced Technologies

The global PCB fabrication market is poised for substantial growth by 2026, driven largely by the proliferation of advanced technologies. The increasing adoption of 5G networks, artificial intelligence (AI), and the Internet of Things (IoT) is creating a surge in demand for high-performance and miniaturized printed circuit boards. 5G infrastructure deployment, in particular, requires advanced PCBs with high-frequency capabilities, such as those made from low-loss laminates like PTFE, to support faster data transmission and reduced latency. Additionally, AI-driven edge computing and data centers are demanding high-layer-count and high-density interconnect (HDI) PCBs to manage complex processing tasks efficiently.

Growth in Automotive Electronics

The automotive sector is emerging as a key growth driver for PCB fabrication. By 2026, the shift toward electric vehicles (EVs), autonomous driving systems, and advanced driver-assistance systems (ADAS) will significantly increase the complexity and volume of PCBs used in vehicles. EVs require power-dense and thermally efficient PCBs for battery management systems, inverters, and onboard chargers. The integration of radar, LiDAR, and camera systems in autonomous vehicles also necessitates high-reliability, multi-layer PCBs with stringent safety standards. As automakers expand their electrification strategies, PCB manufacturers are expected to invest in automotive-grade fabrication processes and materials to meet rigorous qualification requirements.

Advancements in HDI and Flexible PCBs

High-Density Interconnect (HDI) and flexible PCB technologies are anticipated to dominate innovation in PCB fabrication by 2026. Consumers’ demand for compact, lightweight, and multifunctional electronics—such as smartphones, wearables, and medical devices—continues to push the boundaries of PCB miniaturization. HDI PCBs, featuring microvias and finer line widths, enable higher component density and improved signal integrity. Meanwhile, flexible and rigid-flex PCBs are gaining traction due to their ability to conform to complex shapes and reduce interconnect weight, especially in aerospace, healthcare, and portable electronics. Fabricators are investing in laser drilling, advanced imaging, and automated optical inspection (AOI) to support these high-precision processes.

Sustainability and Green Manufacturing

Environmental regulations and corporate sustainability goals are reshaping PCB fabrication practices. By 2026, the industry is expected to adopt more eco-friendly materials and processes to reduce hazardous waste, water consumption, and carbon emissions. Lead-free and halogen-free materials are becoming standard, while manufacturers are exploring bio-based substrates and recyclable components. Additionally, closed-loop water treatment systems, energy-efficient production lines, and waste reduction initiatives are being implemented across fabrication facilities, particularly in Europe and North America. Compliance with regulations such as RoHS, REACH, and the EU Green Deal will be critical for market access and competitiveness.

Regional Shifts and Supply Chain Resilience

Geopolitical dynamics and supply chain disruptions have prompted a reevaluation of PCB manufacturing footprints. While Asia—particularly China, Taiwan, and South Korea—remains the dominant hub for PCB fabrication, North America and Europe are seeing renewed investment in localized production. By 2026, nearshoring and onshoring initiatives, supported by government incentives (e.g., the U.S. CHIPS and Science Act), aim to bolster regional supply chain resilience, especially for strategic sectors like defense, aerospace, and medical electronics. This shift is encouraging PCB fabricators to diversify their operations and adopt digital manufacturing technologies such as Industry 4.0 and smart factories to enhance agility and responsiveness.

Conclusion

By 2026, the PCB fabrication market will be defined by technological sophistication, sustainability, and geographic diversification. Innovations in materials and design—fueled by AI, 5G, and electrification—will drive demand for advanced PCBs, while environmental and geopolitical factors reshape manufacturing strategies. Companies that invest in R&D, automation, and sustainable practices will be best positioned to capitalize on emerging opportunities in this evolving landscape.

Common Pitfalls in Sourcing PCB Fabrication (Quality, IP)

Poor Quality Control and Inconsistent Manufacturing Standards

One of the most frequent issues when sourcing PCB fabrication—especially from low-cost overseas manufacturers—is inconsistent quality. Some fabricators may lack rigorous quality assurance processes, leading to defects such as incorrect trace widths, inadequate plating, or delamination. Without proper adherence to IPC standards or regular in-process inspections, even a small defect can result in board failure, increased rework, or field reliability issues.

Inadequate Communication and Documentation Misinterpretation

Miscommunication between design teams and fabricators often leads to errors. Design files (Gerber, drill files, etc.) may be misinterpreted if not properly documented or if the manufacturer lacks experienced engineering support. Missing or unclear specifications regarding impedance control, material grades (e.g., FR-4 Tg), surface finishes, or solder mask requirements can result in non-compliant boards that fail functional testing.

Intellectual Property (IP) Exposure and Theft Risks

Sharing detailed PCB design files, especially with offshore suppliers, exposes sensitive IP. Untrusted fabricators may duplicate your design for unauthorized production or sell it to competitors. Lack of non-disclosure agreements (NDAs), absence of legal recourse in certain jurisdictions, and weak IP protection frameworks increase the risk of design theft, particularly in regions with lax enforcement of intellectual property rights.

Hidden Costs and Unspecified Tolerances

Quotes may appear competitive but exclude critical costs such as engineering fees, setup charges, or expedited processing. Additionally, some vendors may not strictly adhere to specified tolerances (e.g., layer-to-layer alignment, hole placement) unless explicitly enforced in the procurement agreement. This can lead to functional issues in high-precision applications like RF or high-speed digital circuits.

Limited Traceability and Lack of Process Transparency

Many PCB suppliers, particularly smaller or less reputable ones, offer minimal traceability. Without detailed lot tracking, material certifications, or process documentation, diagnosing field failures becomes difficult. This lack of transparency also complicates compliance with industry standards in regulated sectors such as medical, automotive, or aerospace.

Overlooking Supply Chain Reliability and Lead Time Variability

Relying on a single or distant supplier can expose projects to delays due to logistical issues, political instability, or raw material shortages. Unpredictable lead times and poor responsiveness to changes in order volume or design revisions can disrupt product development schedules and time-to-market.

Failure to Verify Fabricator Credentials and Certifications

Not all PCB manufacturers are equally capable. Sourcing without verifying certifications (e.g., ISO 9001, IPC membership, UL listing) increases the risk of partnering with underqualified vendors. Without proof of capability in advanced technologies (e.g., HDI, impedance-controlled multilayers), projects may face technical limitations or unexpected redesigns.

Logistics & Compliance Guide for PCB Fabrication

Overview

This guide outlines the essential logistics and compliance considerations when sourcing and manufacturing printed circuit boards (PCBs). Adhering to these practices ensures timely delivery, regulatory compliance, product reliability, and supply chain integrity.

Regulatory Compliance Requirements

RoHS (Restriction of Hazardous Substances)

Ensure all PCBs and components comply with RoHS directives (EU Directive 2011/65/EU and amendments), restricting substances such as lead, mercury, cadmium, and certain flame retardants. Request RoHS compliance certificates from fabricators and maintain documentation for audits.

REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals)

Verify that materials used in PCB fabrication (e.g., substrates, finishes, laminates) are registered under REACH (EC 1907/2006). Confirm that no substances of very high concern (SVHCs) exceeding threshold limits are present.

IPC Standards

Adhere to IPC standards such as IPC-6012 (qualification and performance for rigid PCBs) and IPC-A-600 (acceptability of printed boards). Specify required IPC class (e.g., Class 2 or Class 3) in design and fabrication files to ensure quality expectations are met.

UL Recognition and Flammability Ratings

If applicable, ensure PCBs use UL-recognized materials (e.g., FR-4) with proper flammability ratings (e.g., 94V-0). Maintain UL file numbers and ensure markings are correctly applied on production panels.

Export and Trade Compliance

ITAR/EAR Regulations

Determine whether your PCB design or end-use falls under International Traffic in Arms Regulations (ITAR) or Export Administration Regulations (EAR). High-speed, RF, or military-grade designs may require export licenses. Restrict data sharing with unauthorized parties and vet overseas fabricators accordingly.

Country of Origin and Trade Sanctions

Confirm PCB manufacturing occurs in countries compliant with U.S. or EU trade sanctions. Avoid fabricators in embargoed regions. Document country of origin for customs and import compliance, especially for global supply chains.

Design and Documentation Standards

Fabrication Drawings and Stack-Up Specifications

Provide complete fabrication drawings including layer stack-up, material types (e.g., Isola, Panasonic), copper weights, impedance control requirements, and finish (e.g., ENIG, HASL). Use standardized formats (e.g., PDF, DXF) for clarity.

Gerber and NC Drill Files

Deliver Gerber files (RS-274X format) and NC drill files with proper units (mm/inch), precision, and aperture lists embedded. Include layer naming conventions aligned with industry standards.

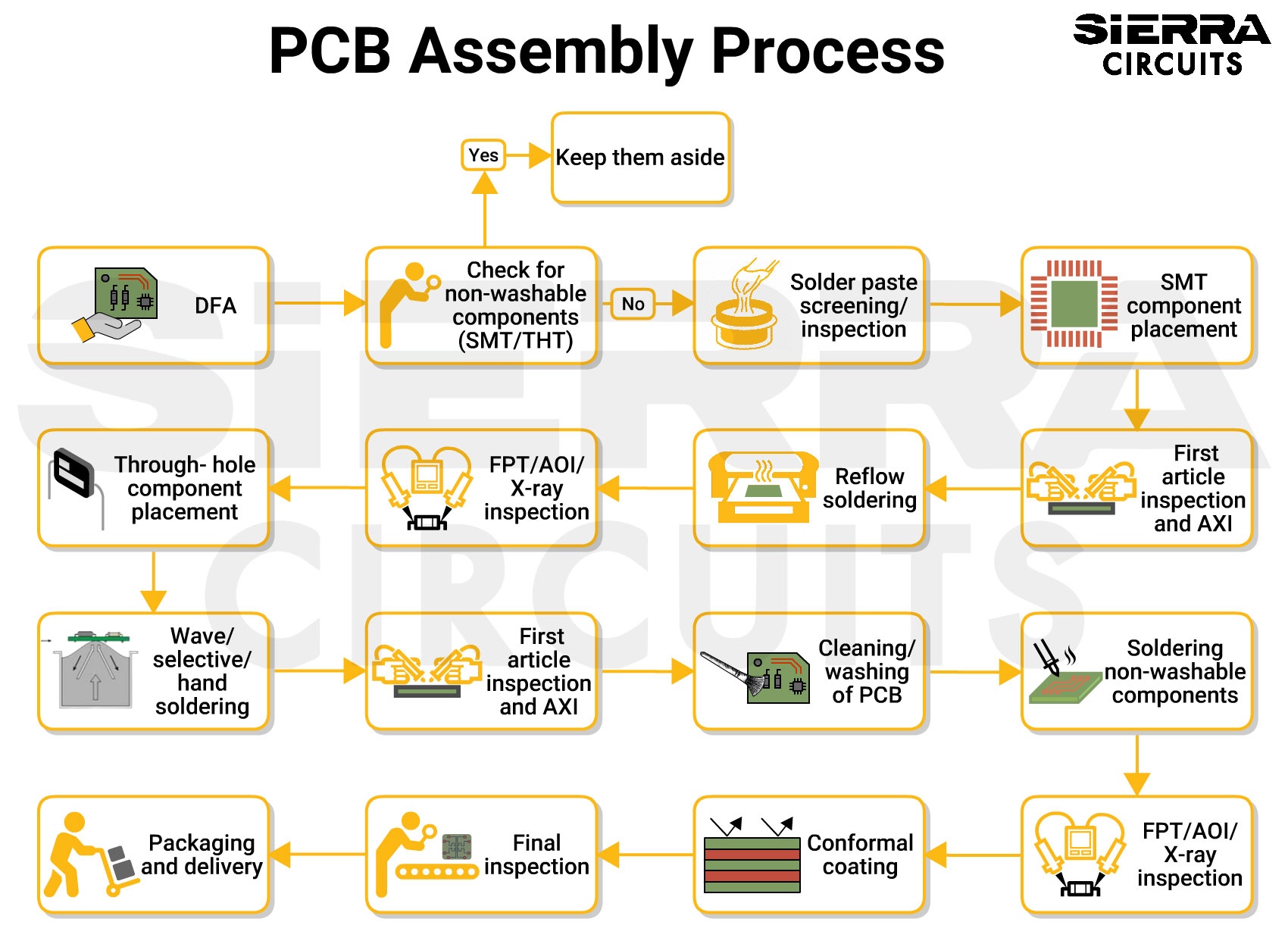

Bill of Materials (BOM) and Assembly Requirements

For PCBA (PCB Assembly), provide a complete BOM with manufacturer part numbers, lifecycle status, and compliance markings (e.g., RoHS, REACH). Specify assembly standards such as IPC-A-610 for inspection criteria.

Logistics and Supply Chain Management

Lead Time and Production Scheduling

Establish clear lead times with fabricators, accounting for design review, material procurement, and production cycles. Allow buffer time for revisions or compliance retesting. Use purchase orders with delivery milestones.

Shipping and Packaging Requirements

Specify ESD-safe packaging for sensitive PCBs. Use moisture barrier bags (MBB) with desiccant and humidity indicator cards if applicable. Label packages with handling instructions, lot numbers, and compliance marks.

Inventory and Obsolescence Management

Monitor component and material obsolescence. Work with fabricators to qualify second sources or alternative materials. Maintain strategic stock for long-lead or end-of-life items.

Quality Assurance and Traceability

First Article Inspection (FAI)

Require FAI reports for initial production runs, including dimensional checks, cross-section analysis, and electrical testing (e.g., continuity, isolation).

Lot Traceability

Ensure each production lot is traceable via unique identifiers. Maintain records of materials used, process parameters, and test results for at least 10 years, as required by many industries.

Testing and Validation

Specify required testing:
– Electrical Test (flying probe or fixture)
– Solderability testing (for bare boards)
– Microsection analysis (for plating and via integrity)
– Impedance verification (TDR testing if high-speed)

Environmental and Sustainability Practices

Waste Management and Recycling

Partner with fabricators that follow proper PCB waste disposal protocols, including treatment of copper etching waste and recycling of substrates.

Green Manufacturing Initiatives

Encourage the use of lead-free processes, low-halogen materials, and energy-efficient production methods. Evaluate suppliers based on environmental management systems (e.g., ISO 14001).

Supplier Qualification and Audits

Pre-Qualification Assessment

Evaluate PCB fabricators based on:
– Certifications (ISO 9001, IATF 16949, AS9100 if applicable)
– Compliance history
– Technical capabilities (HDI, impedance control, etc.)
– Geographic and geopolitical risk

On-Site or Remote Audits

Conduct audits to assess manufacturing controls, document handling, and compliance procedures. Use audit checklists aligned with your quality and regulatory requirements.

Incident Response and Non-Conformance Management

Corrective and Preventive Actions (CAPA)

Establish a process for handling non-conforming materials or deviations. Require root cause analysis and corrective actions from suppliers.

Recall and Reporting Procedures

Define procedures for product recalls or compliance breaches. Report significant non-compliances to relevant authorities as required by law (e.g., EU Safety Gate).

Conclusion

Effective logistics and compliance management in PCB fabrication ensures product safety, regulatory adherence, and supply chain resilience. By integrating these practices into procurement and production workflows, organizations can mitigate risk, improve quality, and maintain global market access.
