Tube Filling Machines: The Ultimate 2025 Sourcing Guide

Introduction: Navigating the Global Market for Tube Filling Machines

In the high-stakes sectors of pharmaceuticals, cosmetics, and food processing, packaging precision is not merely an operational detail—it is a competitive advantage. Whether your production line handles high-viscosity ointments, toothpaste, or delicate foodstuff, the reliability of your tube filling machine dictates your time-to-market and product integrity.

However, sourcing the right machinery involves navigating a complex matrix of technical specifications. Buyers in the US and European markets must distinguish between dedicated units and “Universal” machines capable of switching between metal, plastic, aluminum, and laminate tubes. Furthermore, scaling production requires precise calibration; a tabletop unit running at 10-12 tubes per minute (TPM) suits boutique operations, whereas large-scale facilities require fully automatic systems delivering 60 to 80+ TPM.

This guide provides a strategic framework for procurement professionals and production managers. We cut through the technical noise to help you identify equipment that aligns with your operational goals.

Key areas covered in this guide:

• Speed & Scalability: Comparing low-output pneumatic fillers (10-30 TPM) against high-speed, fully automatic lines (60-80 TPM).
• Material Versatility: Evaluating machines equipped for specific tube materials versus universal sealers.
• Technological Integration: The importance of PLC-based touch screen panels and servo-driven accuracy in modern manufacturing.
• ROI Factors: Balancing upfront costs with long-term maintenance and changeover flexibility.

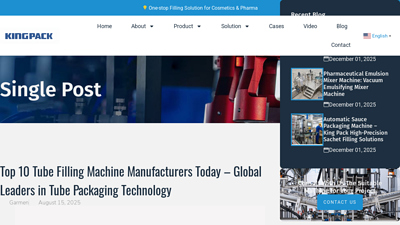

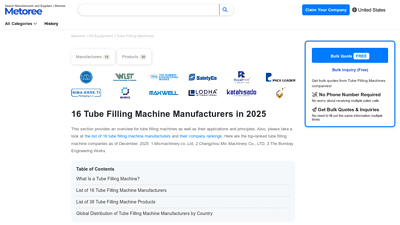

Top 10 Tube Filling Machines Manufacturers & Suppliers List

Understanding tube filling machines Types and Variations

Understanding Tube Filling Machine Types and Variations

Selecting the correct tube filling machinery is contingent on three primary factors: tube material (plastic, laminate, or metal), required throughput (tubes per minute), and product viscosity. Manufacturers generally categorize these machines by their level of automation and their sealing or closing mechanism.

Below is a comparative overview of the primary machine configurations available in the US and European markets.

Quick Comparison: Tube Filling Machine Configurations

Machine Type	Key Features	Typical Applications	Pros & Cons
Universal Automatic	• Handles Metal, Plastic, & Laminate • Speed: 30–80 tubes/min • PLC/Touch Screen Controls	• Contract Packaging (Co-packing) • Pharma & Cosmetics with varied SKUs	Pros: Maximum versatility; high ROI for multi-product lines. Cons: Higher initial capital investment.
Plastic/Laminate Dedicated	• Hot Air or Ultrasonic Sealing • Speed: 12–60+ tubes/min • Integrated Date/Lot Coding	• Toothpaste • Cosmetic Creams • Shaving Gels	Pros: Clean, aesthetic seals; optimized for modern packaging. Cons: Cannot process aluminum/metal tubes.
Metal/Aluminum Dedicated	• Mechanical Crimping/Folding • Speed: 10–35 tubes/min • Robust folding stations	• Pharmaceutical Ointments • Foodstuffs (Pastes) • Adhesives/Glues	Pros: Airtight mechanical closures; handles high-viscosity products well. Cons: Slower throughput compared to hot-air systems.
Tabletop / Semi-Automatic	• Compact Footprint • Speed: 10–12 tubes/min • Manual tube loading	• R&D Labs • Boutique/Startup Manufacturing • Small Batch Runs	Pros: Cost-effective; minimal space required. Cons: Labor intensive; low output limits scalability.

---

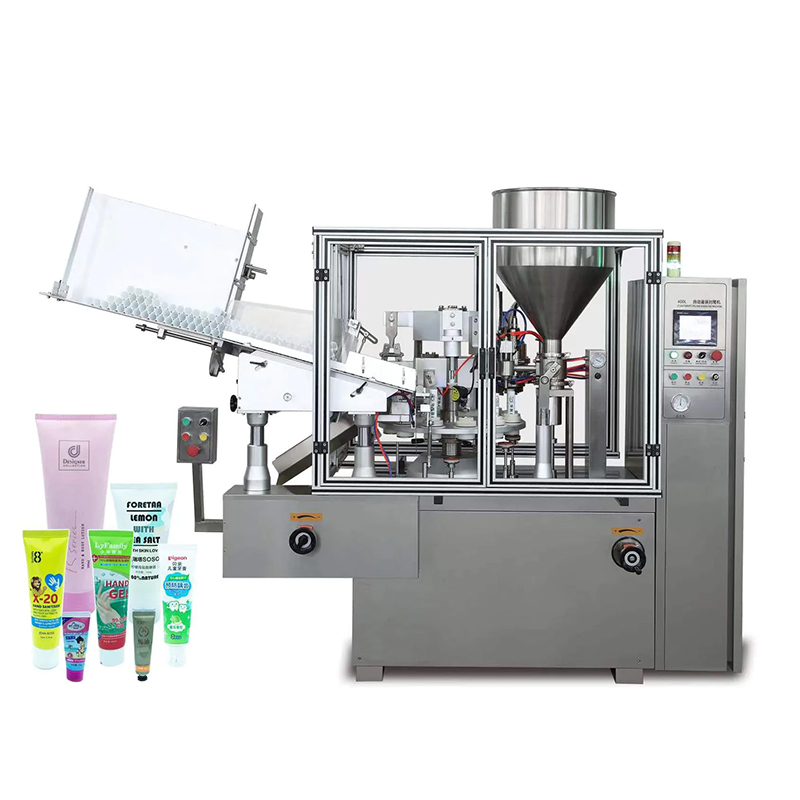

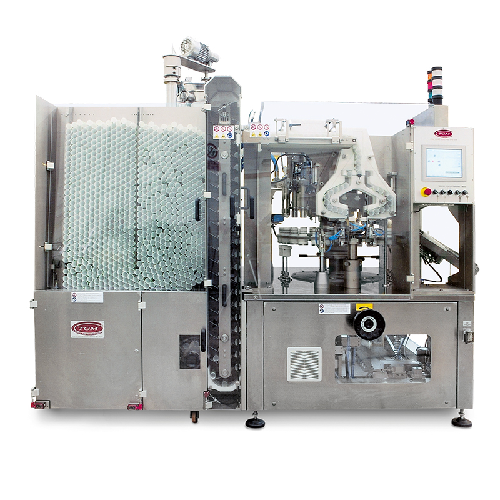

1. Universal Fully Automatic Tube Fillers

For facilities requiring high versatility, Universal Tube Filling Machines are the industry standard. These units are engineered to switch between sealing methods—hot air for plastic/laminates and mechanical crimping for aluminum—within a single chassis.

• Throughput: High-speed variations typically run at 60 to 80 tubes per minute, while mid-range options operate at 30 tubes per minute.
• Technology: These machines utilize PLC-based systems with touch screen panels (HMI) to manage fill volume, speed, and sealing parameters.
• Best For: Manufacturers producing a wide range of viscous and semi-viscous products—from pharmaceuticals to foodstuff—who need to switch between tube materials without purchasing separate machines.

2. Plastic and Laminate Tube Fillers

These machines are specialized for thermoplastic and laminate tubes, utilizing thermal energy to create a hermetic seal. The most common method is Hot Air Sealing, where heated air is blown into the open end of the tube to soften the plastic before knurled jaws press it shut.

• Throughput: Ranges from entry-level speeds of 12 tubes per minute up to high-speed automation (40–60+ tubes/min).
• Mechanism: Focuses on precise temperature control to ensure seal integrity without burning the tube material.
• Best For: Cosmetic and personal care brands (sunscreen, lotion, toothpaste) where the aesthetic quality of the seal and integrated batch coding are critical.

3. Metal (Aluminum) Tube Fillers

Metal tube fillers do not use heat. Instead, they utilize a mechanical closing system that folds the metal tube end. Common closure types include saddle folds, double folds, or triple folds to ensure the package is tamper-evident and leak-proof.

• Throughput: Generally slower than plastic counterparts due to the mechanical complexity of folding, typically ranging from 10 to 35 tubes per minute.
• Mechanism: Multi-station indexing moves the tube through filling, flattening, and crimping stations.
• Best For: Pharmaceutical ointments requiring aluminum for barrier protection, as well as industrial products like greases, adhesives, and artists’ paints.

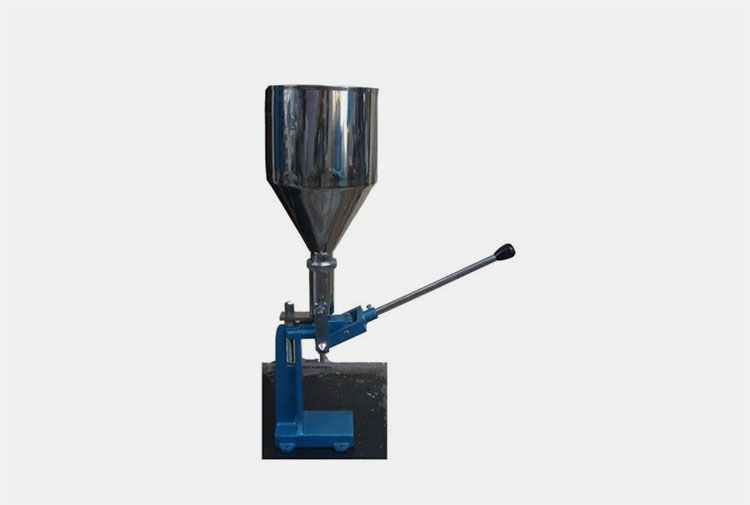

4. Tabletop and Lab-Scale Machines

Designed for startups, laboratories, or pilot runs, these compact units offer professional filling and sealing capabilities with a significantly smaller footprint.

• Throughput: Limited to approximately 10–12 tubes per minute.
• Operation: Often requires an operator to manually load the tubes into the rotary index table, though the filling and sealing/crimping cycles are automated.
• Best For: Small batch production, R&D product testing, and boutique manufacturers moving away from manual filling syringes but not yet ready for fully inline automation.

Key Industrial Applications of tube filling machines

Key Industrial Applications of Tube Filling Machines

Tube filling and sealing technology is critical for manufacturers handling viscous and semi-viscous products. The versatility of modern machinery—ranging from tabletop units for R&D to fully automatic universal lines running at 80 tubes per minute—allows for broad adoption across regulated sectors in the USA and Europe.

The following table outlines the primary industrial sectors utilizing these machines, their specific product applications, and the compatibility requirements for tube materials (Metal, Plastic, Aluminum, Laminate).

Industry Application Matrix

Industry Sector	Common Applications	Tube Material Compatibility	Key Machine Requirements
Pharmaceuticals	Ointments, medicated creams, antiseptic gels, eye salves.	Aluminum & Metal: Preferred for barrier protection and shelf stability.	High dosing accuracy, hygienic design (GMP compliant), and crimping capabilities for metal tubes.
Cosmetics & Beauty	Face creams, lotions, foundations, hair dyes, serums.	Plastic & Laminate: Focus on aesthetic presentation and “soft touch” feel.	Hot air sealing for clean finishes, ability to handle high-viscosity fluids, and batch coding.
Personal Care	Toothpaste, shaving creams, hair gels, sunscreens.	Laminate (ABL/PBL): Durable for squeezing and high-volume retail display.	High-speed throughput (60-80 tubes/min) and automatic tube loading systems.
Food & Beverage	Pastes (tomato, garlic), spreads, icing, condiments.	Plastic & Aluminum: Varies based on product acidity and shelf-life needs.	Food-grade contact parts, easy-clean systems, and precise piston filling to prevent waste.
Chemical & Industrial	Adhesives, greases, sealants, paints, lubricants.	Metal & Plastic: Robust materials to prevent chemical leaching.	Explosion-proof options (if solvents are involved) and robust sealing for hazardous materials.

---

Sector-Specific Benefits and Operational Advantages

Beyond simple filling, modern tube fillers provide specific operational advantages tailored to the viscosity of the product and the material of the container.

1. Pharmaceutical Precision and Hygiene

In the pharmaceutical sector, integrity is paramount. Machines designed for this industry, such as Universal Tube Filling Machines, offer the flexibility to handle aluminum tubes which are standard for ointments requiring air-tight barriers.
* Benefit: PLC-based controls ensure precise dosing volumes, reducing costly product giveaway of active ingredients.
* Feature: Metal tube crimping stations ensure hermetic seals to maintain sterility and extend shelf life.

2. Cosmetic Versatility and Aesthetics

Cosmetic brands rely heavily on shelf appeal. Manufacturers utilize Plastic and Laminate Tube Fillers that employ hot air sealing technologies to create clean, visually appealing seals without scorching the artwork.
* Benefit: The ability to handle semi-viscous products ensures smooth filling of thick creams without air pockets.
* Feature: Date and lot coding (stamping) are integrated directly into the seal, maintaining compliance without disrupting the package design.

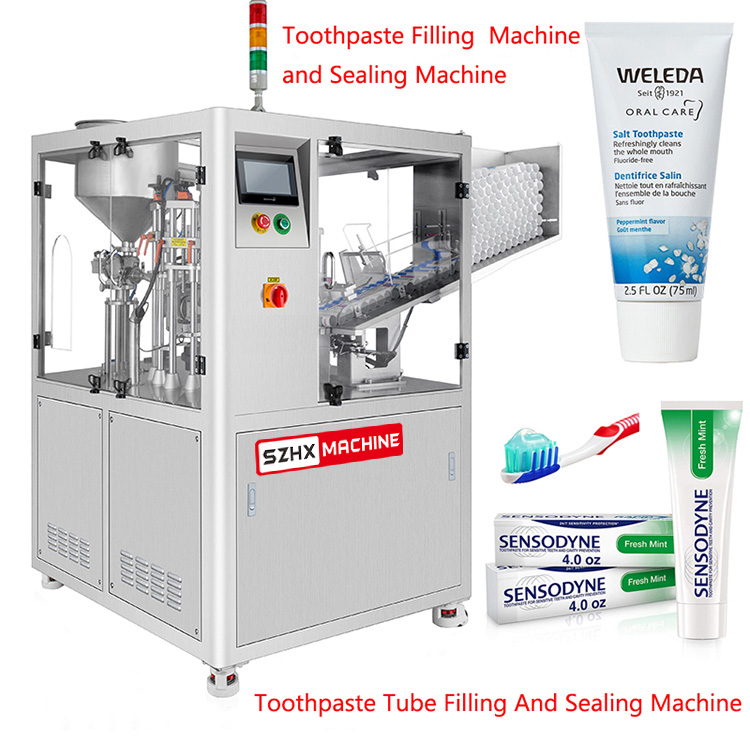

3. Scalability for Personal Care Manufacturing

High-volume products like toothpaste require machinery capable of rapid throughput.
* Benefit: Scalability allows manufacturers to transition from pilot runs to mass production.
* Entry Level: Tabletop machines (10–12 tubes/min) allow for lab testing and boutique batches.
* Mass Production: Fully automatic universal machines scale up to 60–80 tubes per minute, utilizing automatic tube elevators and loading systems to minimize manual labor.

4. Material Flexibility (Universal Machines)

For contract packagers (co-packers) serving multiple industries, Universal Tube Filling Machines provide a significant ROI.
* Benefit: These units can switch between plastic (hot air sealing) and metal (mechanical crimping) tooling.
* Feature: Quick changeover capabilities allow operators to shift from filling aluminum pharmaceutical tubes to plastic cosmetic tubes on the same chassis, maximizing machine utilization rates.

3 Common User Pain Points for ‘tube filling machines’ & Their Solutions

3 Common User Pain Points for Tube Filling Machines & Their Solutions

In the pharmaceutical, cosmetic, and food packaging sectors, selecting the wrong tube filling equipment can lead to costly downtime and product waste. Based on current market capabilities, here are three common operational challenges and their engineering solutions.

1. Inability to Handle Multiple Tube Materials

The Scenario: A contract manufacturer (CMO) or a brand with diverse SKUs needs to package a cosmetic cream in a plastic laminate tube and a pharmaceutical ointment in an aluminum tube.

The Problem: Traditional machines are often dedicated to a single sealing technology. Plastic tubes require hot air sealing, while metal tubes require mechanical crimping. Purchasing two separate machines doubles the capital expenditure and footprint. Furthermore, switching between materials on older equipment can result in extended downtime due to complex tooling changes.

The Solution: Implement Universal Tube Filling Machines.
* Versatility: As noted in industry specifications, universal models are engineered to run both plastic (hot air sealing) and aluminum (metal crimping) tubes on a single chassis.
* Efficiency: Modern units allow for rapid changeovers between sealing units. Look for machines offering scalable speeds (e.g., 30, 60, or 80 tubes/minute) that can adapt to different material rigidity without damaging the tube.

2. Inconsistent Filling Accuracy with Viscous Products

The Scenario: A production line is filling high-viscosity products such as toothpaste, heavy ointments, or shaving creams.

The Problem: Variations in product viscosity can lead to air pockets, “tailing” (product dripping on the seal area), or inconsistent fill weights. This results in compromised seal integrity (leaking tubes) and regulatory compliance issues regarding net weight.

The Solution: utilize PLC-Controlled Volumetric Piston Fillers.
* Control: Machines equipped with PLC (Programmable Logic Controller) and touch screen panels allow operators to fine-tune fill volume and speed based on the specific viscosity of the product.
* Mechanism: Ensure the machine utilizes a pneumatic piston filler or a vertical screw pump designed for semi-viscous to viscous products. This ensures precise dosing and a clean cutoff, preventing product from contaminating the seal area.

3. Scalability Bottlenecks (Speed vs. Volume)

The Scenario: A startup moves from R&D to mass production, or a large manufacturer needs to run a small “limited edition” batch.

The Problem: Mismatched capacity. A tabletop machine (10-12 tubes/min) creates a bottleneck as demand spikes, while a high-speed rotary machine (80+ tubes/min) incurs excessive setup time and waste for small, short-run batches.

The Solution: Match the Automation Level to Production Phase.
* For R&D/Pilot Batches: Utilize tabletop or semi-automatic plastic/metal tube sealers (10-12 tubes/min). These require manual tube loading but offer low changeover costs.
* For Mass Production: Upgrade to fully automatic universal machines capable of 60-80 tubes/minute. These systems integrate automatic tube loading (via tube elevators), orientation, filling, and coding, significantly reducing labor costs per unit.

Strategic Material Selection Guide for tube filling machines

Here is the strategic guide section, written in a professional B2B tone optimized for US and European manufacturing audiences.

---

Strategic Material Selection Guide for Tube Filling Machines

Selecting the appropriate tube filling and sealing machinery is inextricably linked to the tube substrate. The physical properties of the tube material dictate the required sealing technology (thermal vs. mechanical) and the machine’s handling capabilities.

Based on current industry standards and equipment capabilities, manufacturers must categorize their requirements into three primary material groups: Plastic/Laminates, Metal/Aluminum, and Hybrid/Universal applications.

1. Plastic and Laminate Tubes (PE, PP, Polyfoil)

Plastic and laminate tubes are the dominant standard for cosmetics, toothpaste, and personal care products. These materials require thermal bonding for closure.

• Sealing Technology: Machines dedicated to these materials utilize Hot Air Sealing or ultrasonic jaws. The equipment heats the inner sealable layer of the tube and presses it to create a hermetic bond.
• Machine Configuration: As noted in equipment specifications from manufacturers like TWP and Packleader, dedicated plastic tube fillers often operate at varying speeds (e.g., 12 to 40 tubes/minute for tabletop or intermediate units) and include coding stations for date/lot stamping within the seal.
• Key Consideration: Ensure the machine’s nozzle design prevents “stringing” when filling viscous products like creams or ointments into these static-prone tubes.

2. Metal and Aluminum Tubes

Aluminum tubes remain the preferred choice for pharmaceuticals, ointments, and specific foodstuff applications due to their superior barrier properties and “suck-back” prevention. Unlike plastic, metal cannot be heat-sealed.

• Sealing Technology: These machines employ Mechanical Crimping (folding). The process involves flattening the tube end and folding it multiple times (double, triple, or saddle fold) to ensure a leak-proof closure.
• Machine Configuration: Dedicated metal tube fillers focus on handling rigidity. Throughput speeds generally range from 10 to 35 tubes per minute for standard units.
• Key Consideration: Metal tubes are susceptible to denting during the loading process. High-quality tube elevators and loading chutes are essential to maintain aesthetic integrity before the filling station.

3. Universal Applications (Multi-Material Compatibility)

For contract packagers (co-packers) or facilities producing a diverse SKU range, dedicated machines may limit operational flexibility. “Universal” tube filling machines offer a strategic advantage by bridging the gap between substrates.

• Versatility: Universal machines are engineered to handle both plastic/laminate and aluminum tubes. They allow operators to swap sealing units—changing from a hot air system to a crimping station—on the same chassis.
• Throughput: These units are typically fully automatic and geared toward higher production requirements, with standard outputs ranging from 30 to 80 tubes per minute.
• Control Systems: As highlighted by Packleader specifications, these versatile units rely heavily on PLC-based logic and touch-screen interfaces to manage the distinct settings required for different material viscosities and sealing dwell times.

Comparative Analysis: Material vs. Machine Configuration

The following table outlines the correlation between tube material, required sealing mechanisms, and typical production capabilities based on current market specifications.

Tube Material	Primary Sealing Method	Machine Classification	Typical Speed Range (Tubes/Min)	Best For Applications
Plastic / PE	Hot Air / Ultrasonic	Dedicated Plastic Filler	12 – 40	Cosmetics, Shaving Cream, Foodstuff
Laminate (ABL/PBL)	Hot Air / Ultrasonic	Dedicated Plastic Filler	12 – 40	Toothpaste, High-Barrier Cosmetics
Aluminum / Metal	Mechanical Crimping (Folding)	Dedicated Metal Filler	10 – 35	Pharmaceuticals, Ointments, Adhesives
Mixed / Variable	Interchangeable (Hot Air & Crimp)	Universal Tube Filler	30 – 80	Contract Packaging, Multi-SKU Production

Strategic Takeaway: If your production line is dedicated to a single product type (e.g., a pharmaceutical ointment), a dedicated metal crimping machine offers the highest ROI and reliability. However, for facilities targeting the US and European markets with fluctuating demands between cosmetics (plastic) and pharma (metal), investing in a Universal machine (60-80 tubes/min) provides the necessary agility to adapt without expanding the facility footprint.

In-depth Look: Manufacturing Processes and Quality Assurance for tube filling machines

In-depth Look: Manufacturing Processes and Quality Assurance for Tube Filling Machines

For buyers in the USA and Europe, understanding the engineering pedigree of a tube filling machine is as critical as its output speed. High-end equipment manufacturers employ rigorous fabrication protocols to ensure machines can handle the demands of cosmetic, pharmaceutical, and foodstuff production.

The manufacturing lifecycle of a tube filler—from a tabletop 12-tube/minute unit to a fully automatic 80-tube/minute universal system—follows a strict sequence of preparation, forming, assembly, and quality control.

1. Material Preparation and Component Fabrication

The foundation of any pharmaceutical-grade machine is the raw material. Manufacturers prioritize sanitary compliance and structural rigidity.

• Material Selection: The chassis and all product-contact parts are fabricated from high-grade Stainless Steel (typically SS304 for the frame and SS316L for contact parts like hoppers and nozzles). This ensures resistance to corrosion from viscous and semi-viscous products like ointments and toothpaste.
• Precision Machining: CNC machining centers are used to cut and form critical mechanical components, including the diving nozzles and rotary indexing tables.
• Component Forming:
  • Pumping Systems: Specific filling mechanisms, such as Pneumatic Piston Fillers for standard viscosity or Vertical/Short Screw Pumps for heavy pastes, are machined to tight tolerances to prevent leakage and ensure dosing accuracy.
  • Tube Holders: Pucks and tube holders are molded or machined to fit specific tube diameters (plastic, aluminum, or laminate) to ensure stability during the high-speed indexing process.

2. Electro-Mechanical Assembly

Once individual components are fabricated, the assembly phase integrates mechanical motion with digital automation.

• Frame Assembly: The stainless steel skeleton is welded and finished to minimize crevices, adhering to cGMP (Current Good Manufacturing Practice) standards for easy cleaning.
• System Integration:
  • Drive Systems: Installation of cam drives or servo motors that control the indexing speed (e.g., calibrating for 30, 60, or 80 tubes/minute).
  • Station Configuration: Technicians install specific stations based on the machine type. For Universal Tube Filling Machines, interchangeable heads are installed to allow switching between hot air sealing (for plastic/laminate) and mechanical crimping (for metal/aluminum).
• Automation Logic: The “brain” of the machine is installed. This involves wiring the PLC (Programmable Logic Controller) and connecting the Touch Screen Control Panel. This integration allows operators to control fill volumes, sealing temperatures, and speed adjustments digitally.
• Peripheral Attachment: Ancillary equipment, such as Tube Elevators for automatic feeding and Tabletop Labeling Machines, are integrated and synchronized with the main unit.

3. Quality Assurance (QC) and Performance Testing

Before a machine is crated for export to US or European facilities, it undergoes a comprehensive Factory Acceptance Test (FAT).

• Dry Run & Cycle Testing: The machine is run without product to ensure the indexing table moves smoothly and the automatic tube loading system functions without jamming.
• Load Testing (Speed Verification): Technicians verify the machine achieves its rated speed.
  • Example: A Universal 60 model is tested to ensure it sustains 60 cycles per minute consistently.
  • Example: Tabletop Plastic Tube Sealers are tested at their lower threshold (12 tubes/minute) to ensure dwell time is sufficient for a perfect seal.
• Sealing Integrity Check:
  • Plastic/Laminate: Hot air sealing is tested for airtightness and aesthetic finish. Date/lot code stamping clarity is verified.
  • Metal: Folding stations are checked to ensure proper crimping (saddle fold, double fold) without cracking the aluminum.
• Dosing Accuracy: The machine is tested with a control substance (often a gel of similar viscosity to the intended product) to verify fill accuracy is within ±1%.

Regulatory Compliance and Standards

To meet the import and operational requirements of Western markets, top-tier manufacturers adhere to specific international standards.

Standard	Relevance to Tube Filling Machines
ISO 9001	Ensures the manufacturer follows a consistent quality management system during fabrication.
CE Marking	Mandatory for the European market; certifies the machine meets EU safety, health, and environmental protection requirements.
cGMP	Critical for pharmaceutical and cosmetic applications; requires sanitary design (SS316L contact parts) and easy disassembly for cleaning.
UL / CSA	(Optional/Upon Request) Electrical components often require UL (USA) or CSA (Canada) certification for safety compliance.

By adhering to these manufacturing and QC protocols, manufacturers ensure that equipment—whether a compact 10-tube/min metal crimper or a high-speed 80-tube/min universal line—delivers the reliability required for industrial production.

Practical Sourcing Guide: A Step-by-Step Checklist for ‘tube filling machines’

Practical Sourcing Guide: A Step-by-Step Checklist for Tube Filling Machines

Sourcing a tube filling machine requires balancing production speed, material compatibility, and regulatory compliance. Use this checklist to structure your procurement process, ensuring alignment with USA and European manufacturing standards.

1. Define Production Volume and Speed Requirements

Before engaging suppliers, categorize your required output. Machine speeds dictate the level of automation and capital expenditure.

• Low Volume / Pilot Runs (10–15 tubes/min): Ideal for R&D or boutique cosmetics. Look for tabletop semi-automatic models or manual feeding systems.
• Medium Volume (30–40 tubes/min): Standard for SMEs. Requires automatic tube loading and orientation.
• High Volume (60–80+ tubes/min): Industrial scale. Requires fully automatic “Universal” systems with high-speed indexing.

Speed (Tubes/Min)	Automation Level	Typical Application
10–12	Semi-Auto / Tabletop	Lab samples, startups, micro-batching.
30–40	Automatic	Contract manufacturing, steady mid-sized production.
60–80	Fully Automatic	High-demand consumer goods (toothpaste, pharma).

2. Verify Tube Material and Sealing Compatibility

Tube material dictates the sealing technology. Misalignment here results in high reject rates and leakage.

• Plastic & Laminate Tubes: Require Hot Air Sealing or Ultrasonic Sealing technology. Ensure the machine can trim the seal for a clean finish.
• Metal/Aluminum Tubes: Require Mechanical Crimping/Folding stations.
• Mixed Production: If your SKU list includes both metal and plastic, source a Universal Tube Filling Machine. These units allow for station changeovers to handle both crimping and heat sealing on a single chassis.

3. Match Dosing Systems to Product Viscosity

The internal pumping mechanism must match the rheology of your product (cosmetics, ointments, foodstuff, or pharmaceuticals).

• High Viscosity (Ointments, Toothpaste): Ensure the machine is equipped with a heavy-duty piston filler or a vertical screw pump to prevent cavitation and ensure fill weight accuracy.
• Semi-Viscous/Liquid: Pneumatic piston fillers are generally sufficient.
• Heated Hoppers: For products that must remain warm to flow (e.g., waxes or heavy balms), specify a jacketed/heated hopper with agitation.

4. Evaluate Control Systems and Changeover Efficiency

For USA and European markets, operational efficiency (OEE) is critical.

• PLC & HMI: Prioritize machines with reputable PLC systems (e.g., Siemens, Allen-Bradley) and user-friendly Touch Screen panels for recipe storage.
• Changeover Time: Request specific data on how long it takes to switch between tube sizes. Tool-less changeovers are preferred to minimize downtime.
• Tube Loading: Determine if you need a Tube Elevator (cassette feed) for ergonomic, continuous loading, or if a standard chute feed is sufficient.

5. Regulatory Compliance and Safety (USA/EU Focus)

Ensure the equipment meets strict Western manufacturing standards.

• Contact Parts: All parts touching the product must be SS 316L stainless steel and FDA-compliant.
• Safety Guarding: The machine must have interlocked safety doors (machine stops when opened).
• Certifications:
  • Europe: CE Marking is mandatory.
  • USA: Look for UL-listed electrical components.
  • Pharma: If filling pharmaceuticals, the machine must support GMP/cGMP validation protocols.

6. Vendor Support and Ancillary Equipment

A machine is only as good as its support network.

• Spare Parts Availability: Confirm the vendor stocks parts locally (USA/Europe) to avoid long lead times from overseas.
• Downstream Integration: Check if the vendor offers compatible labeling machines or cartoning systems to complete the line.
• Coding/Marking: Ensure the sealing station includes an integrated date/lot coder (embossing or inkjet) to meet traceability requirements.

Comprehensive Cost and Pricing Analysis for tube filling machines Sourcing

Comprehensive Cost and Pricing Analysis for Tube Filling Machines Sourcing

When sourcing tube filling machinery for US and European markets, procurement professionals must analyze Total Cost of Ownership (TCO), not just the initial purchase price. Prices fluctuate heavily based on automation levels (PLC integration), speed (tubes per minute), and versatility (Universal vs. Material-specific).

The following analysis breaks down the cost structures associated with the machinery specifications found in the current market.

1. Capital Expenditure (CAPEX) by Machine Tier

The primary price driver is the machine’s throughput capacity and material versatility. Based on market standards and the specifications provided by manufacturers like Packleader and TWP, machinery falls into three distinct pricing tiers.

Tier	Speed Specifications	Machine Type	Target Application	Cost Impact
Entry-Level	10–12 tubes/min	Tabletop / Semi-Auto	Lab samples, startups, small batch runs.	Low. Minimal automation; often requires manual tube loading.
Mid-Range	30–40 tubes/min	Automatic (Single Head)	SME production, single-material lines (Plastic or Metal).	Moderate. Balances speed with footprint; pneumatic piston fillers included.
High-Performance	60–80+ tubes/min	Fully Automatic / Universal	High-volume pharma/cosmetics requiring rapid changeover.	High. Includes advanced PLC, tube elevators, and universal sealing (hot air + crimp).

Key Cost Driver: Versatility
“Universal” machines (capable of running plastic, aluminum, and laminate tubes) command a premium over dedicated machines.
* Dedicated Machines (Lower Cost): Designed strictly for one material (e.g., Plastic Tube Sealing Machine at 12 tpm or Metal Tube Crimping Machine at 10 tpm).
* Universal Machines (Higher Cost): Engineered with interchangeable sealing stations (hot air for plastic/laminate, folding stations for metal).

2. Operational Cost Breakdown

Beyond the sticker price, the sourcing strategy must account for the ongoing costs dictated by the machine’s design.

A. Materials and Change Parts

• Construction Quality: Machines handling pharmaceuticals, foodstuff, or cosmetics (as noted in Packleader specs) require sanitary construction (typically SS304 or SS316 contact parts). This increases upfront material costs by 15–20% compared to standard industrial fillers but is mandatory for FDA/EMA compliance.
• Consumables:
  • Universal Machines: Require distinct change parts for switching between metal (folding) and plastic (heating) mechanisms.
  • Viscosity Adaptation: Handling different products (ointments vs. shaving creams) may require swapping between Pneumatic Piston Fillers (standard) and Vertical Screw Pumps (for high viscosity), adding to the tooling budget.

B. Labor and Automation

Labor costs are inversely related to the machine’s automation level.
* Manual/Semi-Auto (10–12 tpm): Requires constant operator attention for loading tubes and aligning registration marks. High labor cost per unit.
* Fully Automatic (30–80 tpm): Utilizes PLC-based touch screen panels (e.g., Packleader FL-300). Integrates Tube Elevators for auto-loading. This significantly reduces labor, requiring only one operator to monitor multiple lines, lowering the cost per unit despite the higher machine CAPEX.

C. Logistics and Installation

• Shipping: High-speed machines (60–80 tpm) are floor-standing units with significant footprints. Sourcing from overseas requires calculating freight for heavy machinery, crating, and insurance.
• Integration: Budget for ancillary equipment integration. A machine sourced independently may require additional freight and setup for compatible Tabletop Labeling Machines or upstream Tube Elevators.

3. Strategic Tips for Cost Optimization

To maximize ROI when sourcing tube fillers, apply the following strategies:

• Right-Size the Speed: Do not over-specify. If current demand is 20 tubes/minute, sourcing an 80-tube/minute Universal machine results in idle capital. A 30–40 tpm machine is often the “sweet spot” for growing SMEs.
• Standardize Tube Materials: If your product line is 90% plastic/laminate, avoid the premium cost of a Universal machine. Source a dedicated Plastic Tube Filling Machine and outsource the small volume of metal tube filling until volume justifies a second machine.
• Bundle Ancillary Equipment: When requesting quotes, bundle the Tube Elevator, Pumps (Vertical or Short Screw), and Labelers with the main unit. Suppliers often reduce the aggregate margin on a turnkey package compared to buying components piecemeal.
• Evaluate Control Systems: Ensure the machine uses standard PLC components (mentioned in Packleader specs). Proprietary control systems can lead to exorbitant costs for future repairs or software updates compared to off-the-shelf electronic components.

Alternatives Analysis: Comparing tube filling machines With Other Solutions

Alternatives Analysis: Comparing Tube Filling Machines With Other Solutions

For production managers in the pharmaceutical, cosmetic, and food sectors, investing in a fully automatic tube filling machine represents a significant capital expenditure. While models like the FL-300 or Universal Tube Filling Machines offer speeds between 30 and 80 tubes per minute, it is essential to evaluate whether high-speed automation is the correct fit for your current production volume.

Below is a comparative analysis of fully automatic tube filling systems against two common alternatives: Manual/Semi-Automatic Tabletop Systems and Contract Packaging (Co-packing).

Comparative Overview

Feature	Fully Automatic Tube Fillers	Manual / Semi-Automatic Systems	Contract Packaging (Outsourcing)
Throughput	High (30–80+ tubes/min)	Low (10–12 tubes/min)	Variable (Dependent on vendor capacity)
Labor Requirement	Low (1 operator for monitoring)	High (Requires manual feeding/transfer)	None (Internal labor not required)
Process Integration	All-in-one (Fill, Seal, Date Code, Trim)	Segmented (Filling and Sealing often separate)	Full Service
Material Versatility	High (Universal handling of Metal, Plastic, Laminate)	Limited (Often material-specific tooling required)	High (Vendor handles changeovers)
Capital Expenditure	High	Low	None (OpEx model)
Consistency & Quality	Excellent (PLC-controlled precision)	Variable (Human error factor)	High (Contractual adherence)

---

Alternative 1: Manual and Semi-Automatic Tabletop Systems

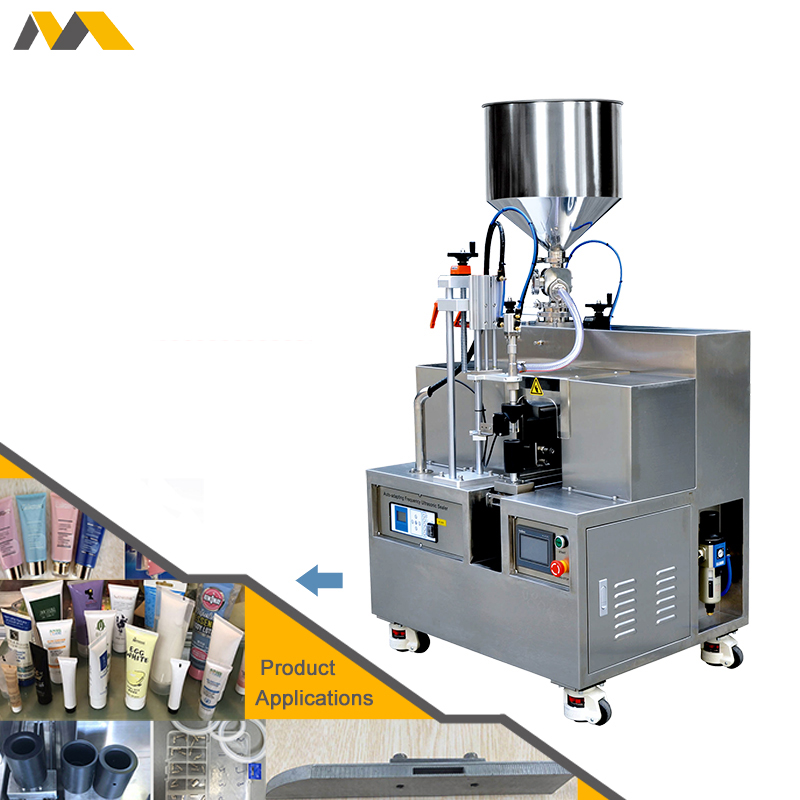

For startups or facilities running pilot batches, tabletop equipment—such as standalone pneumatic piston fillers or dedicated sealers—is the primary alternative to full automation.

The Workflow Difference:
* Automatic: A machine like the Universal 60 automatically loads tubes from an elevator, orients them via sensors, fills viscous products (ointments, toothpaste), seals (hot air or metal crimp), and ejects the finished good.
* Semi-Automatic: An operator must manually insert the tube into a holder, trigger the fill cycle, move the tube to a sealing station, and remove it.

Analysis:
While tabletop solutions require significantly lower upfront investment, they cap production speeds at approximately 10 to 12 tubes per minute. In high-wage markets like the USA and Europe, the operational cost (OpEx) of manual labor often surpasses the ROI of an automatic machine once production exceeds 15,000 units per month. Furthermore, manual handling increases the risk of contamination and inconsistent fill weights, which can be problematic for pharmaceutical compliance.

Best For: R&D labs, boutique cosmetic brands, and small-batch clinical trials.

Alternative 2: Contract Packaging (Co-packing)

The second alternative is outsourcing production to a third-party filler. This removes the need for machinery maintenance, floor space, and technical operators.

The Control Factor:
Owning a machine like the Pack Leader FL-300 provides total control over scheduling. You can switch from shaving cream to foodstuff immediately based on market demand. Co-packing, however, subjects your supply chain to the vendor’s lead times, which can stretch weeks or months.

Analysis:
Co-packing is ideal for testing new market concepts without asset risk. However, for established products, the cost-per-unit is significantly higher than in-house production. Modern automatic fillers utilize PLC-based touch screens to manage viscous and semi-viscous products with high precision. By bringing this capability in-house, manufacturers in the EU and US often achieve ROI within 12–18 months through reduced unit costs and improved inventory agility.

Best For: Seasonal products, one-off promotional runs, or brands with zero manufacturing footprint.

Summary Verdict

• Choose Semi-Automatic if your requirement is strictly under 12 tubes/minute and labor availability is not a constraint.
• Choose Contract Packaging if you wish to avoid capital expenditure entirely and accept lower profit margins per unit.
• Choose Automatic Tube Filling (30–80 tubes/minute) if you require consistent, GMP-compliant sealing for metal, plastic, or laminate tubes, and wish to secure long-term production autonomy.

Essential Technical Properties and Trade Terminology for tube filling machines

Essential Technical Properties and Trade Terminology

When procuring tube filling machinery for the US or European markets, understanding the technical specification sheets and commercial trade terminology is critical for ensuring equipment compatibility and vendor reliability. This section outlines the core technical properties and industry-standard commercial terms used in negotiations.

Key Technical Properties

The following technical specifications determine the machine’s operational capability and suitability for specific production lines.

1. Output Speed (CPM/TPM)

Production speed is measured in Tubes Per Minute (TPM) or Containers Per Minute (CPM).
* Low-Speed/Lab Scale: 10–12 TPM. Typically semi-automatic or tabletop units used for R&D or boutique batches.
* Medium-Speed: 30–40 TPM. Standard for small to mid-sized manufacturing.
* High-Speed: 60–80+ TPM. Fully automatic “Universal” systems designed for mass production.

2. Tube Material Compatibility & Sealing Methods

Machines are generally categorized by the tube material they handle, which dictates the sealing technology required.

Tube Material	Sealing/Closing Technology	Description
Plastic & Laminate	Hot Air / Hot Jaw	Uses heated air to melt the inner tube layer, followed by cooling jaws to seal. Common speeds: 12–80 TPM.
Metal (Aluminum)	Mechanical Crimping	Physical folding of the metal tube end (double, triple, or saddle fold). Common speeds: 10–35 TPM.
Universal (Hybrid)	Interchangeable Heads	Capable of switching between hot air (plastic) and crimping stations (metal) on a single chassis.

3. Dosing Systems and Viscosity Handling

The filling mechanism must match the product’s rheology (flow properties).

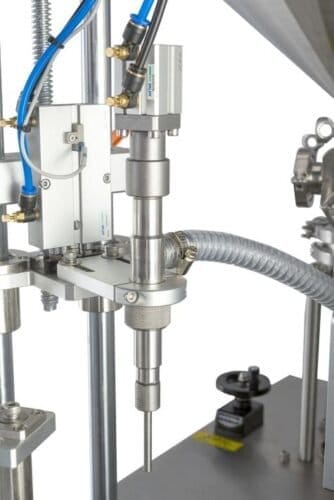

* Pneumatic Piston Fillers: Standard for a wide range of viscosities, ensuring volumetric accuracy.
* Vertical/Short Screw Pumps: Essential for high-viscosity products (e.g., thick ointments, heavy pastes) to prevent cavitation and ensure consistent flow.
* Hopper Options: Heated hoppers with agitators are required for products that must remain warm to flow (e.g., waxes, heavy balms).

4. Control Architecture

Modern machinery for Western markets requires robust automation standards.
* PLC (Programmable Logic Controller): The central computer controlling machine logic.
* HMI (Human-Machine Interface): Touch screen panels for parameter adjustment, error logging, and recipe storage.
* Changeover Time: The time required to switch tooling (pucks/holders) between different tube diameters.

---

Trade Terminology and Commercial Specifications

Navigating B2B procurement requires familiarity with these acronyms and terms regarding manufacturing, shipping, and compliance.

Manufacturing & Customization

• OEM (Original Equipment Manufacturer): The factory produces the machine based on their existing design but may brand it under your company name.
• ODM (Original Design Manufacturer): The factory designs a unique machine based on your specific technical requirements (e.g., a custom footprint or specialized filling nozzle).
• FAT (Factory Acceptance Test): A critical milestone where the buyer visits the manufacturer’s facility to test the machine with their actual product and tubes before final payment and shipment.
• SAT (Site Acceptance Test): Testing performed after the machine is installed at the buyer’s facility to ensure it operates correctly in the local environment.

Procurement Logistics

• MOQ (Minimum Order Quantity): For capital equipment like tube fillers, the MOQ is typically 1 Unit. However, for consumables (the tubes themselves), MOQs can range from 10,000 to 50,000 units.
• Lead Time: The duration between the placement of the deposit and the machine being ready for shipment. For customized tube fillers, standard lead times range from 4 to 12 weeks depending on complexity.

Regulatory Compliance (USA & Europe)

• GMP (Good Manufacturing Practice): Machines destined for pharma or food applications must be GMP compliant, featuring SS304/SS316L stainless steel contact parts and sanitary tri-clamp connections for easy cleaning.
• CE Marking: Mandatory for machinery imported into the European Economic Area, certifying conformity with health, safety, and environmental protection standards.
• UL/CSA: Electrical standards often required for machinery installation in the USA and Canada.

Navigating Market Dynamics and Sourcing Trends in the tube filling machines Sector

Navigating Market Dynamics and Sourcing Trends in the Tube Filling Machines Sector

The global market for tube filling machinery is undergoing a significant transition, driven by the demand for automation, material versatility, and strict compliance standards in the USA and European sectors. For B2B procurement teams, understanding the evolution from single-purpose mechanical units to PLC-driven universal systems is critical for calculating ROI.

Historical Context: The Shift to Universal Applicability

Historically, tube filling technology was segmented rigidly by material: machines were engineered exclusively for metal folding (crimping) or plastic sealing (hot air/ultrasonic). This required manufacturers to maintain separate lines for different SKUs.

Over the last two decades, the industry has pivoted toward Universal Tube Filling Machines. As evidenced by modern equipment specifications, leading manufacturers now engineer chassis capable of running both plastic/laminate and aluminum tubes on the same platform. This evolution allows contract packagers and OEMs to switch between metal crimping and hot-air sealing with minimal changeover time, addressing the need for agile manufacturing in cosmetics and pharmaceuticals.

Current Market Trends

1. Demand for High-Viscosity Handling

Modern consumer preferences have shifted toward complex formulations, ranging from viscous ointments and toothpastes to delicate cosmetic creams and foodstuff.
* Technological Response: Sourcing trends now favor machines equipped with specialized pumping systems, such as vertical screw pumps or pneumatic piston fillers.
* Control Systems: To manage these variables, buyers in the US and EU are prioritizing equipment with PLC-based architectures and touch-screen panels (HMI). This ensures precise dosing control for semi-viscous products, minimizing product giveaway and ensuring weight compliance.

2. Scalability and Speed Segmentation

Sourcing strategies are increasingly dictated by production volume requirements. Current market offerings are segmented clearly by output speed:
* Entry-Level/Lab Scale: 10–12 tubes/minute (typically tabletop units for pilot runs).
* Mid-Range Production: 30–40 tubes/minute (common for boutique cosmetic brands).
* High-Speed Automation: 60–80+ tubes/minute (required for mass-market pharmaceutical or FMCG production).

3. Sustainability and Material Adaptability

Sustainability is no longer a buzzword but a sourcing requirement. The market is seeing a surge in eco-friendly tube materials, including mono-materials and thinner laminates.
* Sealing Integrity: Machines must be capable of handling sensitive laminate tubes without compromising seal integrity.
* Waste Reduction: Modern fully automatic fillers and sealers integrate “no tube, no fill” sensors and precise cutoff mechanisms to eliminate product waste, a key metric for sustainable manufacturing audits.

Sourcing Guide: Matching Machine to Operation

When evaluating suppliers for the US and European markets, procurement should map machine capabilities against production goals. Use the following matrix to guide sourcing decisions:

Production Scale	Speed Requirement	Recommended Machine Type	Key Features to Source
R&D / Micro-Batch	10–12 tubes/min	Tabletop / Semi-Automatic	Compact footprint, specific material focus (Plastic vs. Metal), low energy consumption.
SME / Contract Pack	30–40 tubes/min	Automatic Universal	Versatility is key. Look for “Universal” capabilities to handle both metal and plastic/laminate.
Mass Production	60–80+ tubes/min	Fully Automatic High-Speed	Tube elevators, automatic cassette in-feed, PLC integration, robust service contracts (USA/EU local support).

The Importance of Localized Support

For Western buyers, the “total cost of ownership” calculation extends beyond the machine price. Sourcing trends indicate a preference for vendors offering established USA or European sales and service infrastructure. With machinery lifecycles often exceeding 25 years, access to local spare parts, change parts for new tube sizes, and rapid technical support is a defining factor in vendor selection.

Frequently Asked Questions (FAQs) for B2B Buyers of tube filling machines

Frequently Asked Questions (FAQs) for B2B Buyers of Tube Filling Machines

1. Can a single tube filling machine handle multiple tube materials, such as plastic and metal?
Yes, “Universal” tube filling machines are designed to handle multiple material types. According to industry specifications, universal models are fully automatic and capable of running both plastic (laminate) and aluminum (metal) tubes. However, specific machines also exist that are dedicated solely to one material, such as metal tube crimping machines or plastic tube sealing machines. Buyers must specify their material requirements to determine if a universal or dedicated unit is more cost-effective.

2. What production speeds (tubes per minute) can I expect from modern filling equipment?
Production output varies significantly based on the automation level of the machine.
* Tabletop/Semi-Auto: Typically 10 to 12 tubes per minute. Ideal for R&D, lab settings, or small-batch production.
* Mid-Range Automatic: 30 to 40 tubes per minute.
* High-Speed Automatic: 60 to 80+ tubes per minute.
Buyers should select a model that meets current throughput requirements while allowing for potential scaling.

3. What types of products can be processed using these machines?
Tube filling machines are engineered to handle a wide range of viscous and semi-viscous products. Common applications include:
* Cosmetics: Creams, lotions, and shaving creams.
* Pharmaceuticals: Ointments and medicated gels.
* Personal Care: Toothpaste.
* Foodstuff: Pastes and edible gels.
Advanced machines utilize pneumatic piston fillers or screw pumps to ensure accurate dosing regardless of product viscosity.

4. How do sealing methods differ between metal and plastic tubes?
The sealing mechanism is dictated by the tube material:
* Plastic and Laminate Tubes: Utilize hot air sealing or thermal heating jaws to melt and bond the plastic, often followed by a station to stamp the date/lot code into the seal.
* Metal/Aluminum Tubes: Utilize a mechanical crimping or folding station to fold the metal end securely.
Universal machines feature interchangeable stations to accommodate both sealing methods.

5. What control systems are standard for ensuring filling accuracy and ease of operation?
Modern tube filling machines, such as the FL-300 series, typically employ PLC (Programmable Logic Controller) based systems paired with touch screen control panels. This technology allows operators to monitor performance, adjust fill volumes, and manage speed settings precisely, ensuring world-class performance and consistent repeatability.

6. What is the difference between a Tabletop machine and a Fully Automatic machine?
* Tabletop Machines: Compact units (running ~10-12 tubes/min) requiring manual tube loading. These are cost-effective solutions for startups or pilot runs.
* Fully Automatic Machines: Floor-standing units (running 30-80+ tubes/min) that include features like automatic tube loading (via tube elevators), orientation, filling, sealing, and ejection. These are designed for continuous, high-volume industrial production.

7. What ancillary equipment is recommended to optimize the tube filling line?
To maximize efficiency and automation, the following peripheral equipment is often integrated:
* Tube Elevators: For automatic feeding of empty tubes into the machine hopper.
* Vertical or Short Screw Pumps: For handling difficult or highly viscous products.
* Tabletop Labeling Machines: For applying external labels post-filling.
* Chillers: Required for certain hot-air sealing processes to cool the seal rapidly.

8. Are these machines suitable for regulated industries like pharmaceuticals?
Yes. Manufacturers like Pack Leader design machines specifically capable of handling pharmaceutical products and ointments. When sourcing for regulated sectors in the USA and Europe, buyers should look for machines constructed with sanitary contact parts (often stainless steel) and PLC controls that support validation processes.

Strategic Sourcing Conclusion and Outlook for tube filling machines

Strategic Sourcing Conclusion and Outlook

Sourcing the optimal tube filling machinery requires balancing current production throughput with future material flexibility. As the market shifts toward diverse packaging formats, the distinction between single-material units and “universal” machines has become a critical procurement factor for USA and European manufacturers.

Modern sourcing strategies should prioritize equipment that offers universal versatility, capable of handling plastic, aluminum, and laminate tubes within a single footprint. This adaptability minimizes capital expenditure when pivoting between cosmetic, pharmaceutical, or foodstuff product lines.

Key Sourcing Takeaways:

• Scalability: Options range from entry-level tabletop units (10–12 tubes/min) for pilot batches to fully automatic lines (60–80 tubes/min) for mass production.
• Automation: Prioritize PLC-based systems with touch screen panels to ensure the precision and repeatability required for Western regulatory compliance.
• Material Handling: Ensure sealers utilize appropriate technology (hot air vs. crimping) or invest in hybrid systems to future-proof operations.

Production Volume & Machine Selection Guide

Production Tier	Speed (Tubes/Min)	Ideal Application
Entry-Level	10 – 12	R&D, Boutique Cosmetics, Lab Samples
Mid-Range	30 – 40	SME Contract Packaging, Specialized Pharma
High-Volume	60 – 80	Mass Market Personal Care, High-Demand Foodstuffs

Outlook: The trajectory for tube filling technology points toward increased modularity. Procurement teams should focus on suppliers offering robust aftermarket support and “universal” change parts to maximize ROI and operational longevity.

Important Disclaimer & Terms of Use
