The Ultimate Guide to Mastering the Wire Rope Thimble
Wire rope thimbles, while appearing simple, play an integral role in ensuring the longevity and optimal functionality of wire ropes and slings. Let’s embark on an enlightening journey to understand these small but mighty components, how to pick them, and install them.
The Essence of a Wire Rope Thimble

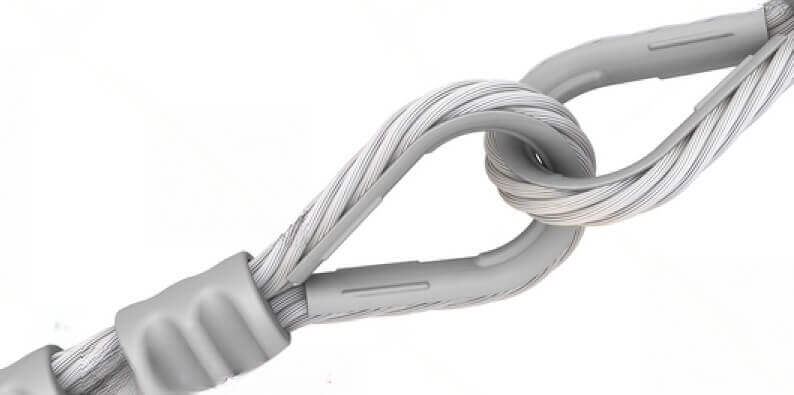

Simply put, wire rope thimbles, or cable thimbles, are safeguarding tools. They breathe life into wire ropes by reinforcing loops, protecting them from wear and tear, and thereby extending their service lifespan. Not only that, but they’re also part of a broader universe of wire rope fittings like ferrules, wire rope clips, and terminals.
Diving into the Types of Wire Rope Thimbles
Just like not all superheroes wear capes, not all wire rope thimbles are created equal. They differ in strength, material, and purpose.
1. Light Duty Thimbles:
- Appearance: Zinc-plated, sporting a shiny finish.
- Purpose: Perfect for static applications where there isn’t much movement or pressure.
- Example: Galvanized Light Duty Wire Rope Thimble G411
2. Heavy Duty Thimbles:
- Appearance: Hot dip galvanized which results in a thicker and more protective coating than its light-duty counterpart.
- Purpose: Geared for more rigorous applications requiring sturdiness.
- Example: Forged Heavy Duty Thimble G414
3. Stainless Steel Thimbles: If you’re battling with moisture or operating in a corrosive environment, these thimbles are your knights in shining armor. Especially valuable in marine contexts, they defy corrosion and promise longevity.
The Art of Installing a Wire Rope Thimble
Step 1: Initiate by wrapping the wire rope’s end around the thimble’s outer groove. The dead end should go past the U-bolt of wire rope grips, or you can use a ferrule crimp.
Step 2: Add another wire rope clip near the loop, tightening it just enough to hold. For a robust grip, utilize a crimping/swaging tool. Alternatively, opt for a wire rope ferrule crimp for a rapid installation.
Step 3: Equally space and tighten the remaining wire rope clips. Ideally, they should be positioned 6-7 rope diameters apart.
Maximizing the Utility of a Wire Rope Thimble
Remember, the aim is to protect the wire rope and ensure smooth navigation. Here are a few expert tips:
- Match thimble size with the cable.
- Ensure a snug fit in the eye of the loop – not too tight, nor too loose.
- For vinyl-coated cables, factor in both the coating’s thickness and the inner diameter when picking a thimble.
For those eager to explore more hardware for wire ropes and slings, delve into our Rigging Accessories category for an extensive collection.
In conclusion, wire rope thimbles, though often overlooked, are instrumental in preserving the integrity of your wire ropes. Selecting the right type and installing it correctly is an art and science combined. It’s an art of ensuring functionality, and a science of optimizing durability. Remember, it’s the small things that make the big difference!
FAQs on Wire Rope Thimbles
1. What are thimbles and their primary purpose in wire ropes? Thimbles are protective tools used in wire ropes and slings to reinforce loops, preventing wear and tear and ensuring a longer service life by preventing fraying caused by friction at the anchor point.
2. How do wire rope thimbles differ in types? Thimbles come in various strengths and materials. The primary types include:
- Light Duty Thimbles: Zinc-plated, suitable for static applications.
- Heavy Duty Thimbles: Hot dip galvanized, for rigorous applications.
- Stainless Steel Thimbles: Ideal for environments with moisture or corrosion, notably marine settings.
3. How do I properly install and use a wire rope thimble? Start by wrapping the wire rope’s end around the thimble’s outer groove. Secure with wire rope clips near the loop and then use a crimping tool or a wire rope ferrule crimp for added stability. It’s vital to space and tighten the clips evenly, ideally 6-7 rope diameters apart.
4. Are there any specific tips for selecting and using wire rope thimbles? Yes! Match the thimble size with the cable size, ensuring a snug fit. If using a vinyl-coated cable, factor in the coating’s thickness and the inner diameter.
5. How can I make a secure cable loop and tie wire rope? To create a cable loop, loop the wire rope onto itself, securing with wire rope clips or ferrules. Use thimbles to reinforce these loops. When tying wire rope, ensure even spacing between clips and tighten them securely.
6. What’s the procedure for using a thimble with a sleeve stop set? Position the thimble within the wire rope’s loop end. The sleeve stop crimps onto the rope, solidifying the thimble’s position and ensuring a sturdy looped end.
7. How can I tighten steel cables? Employ turnbuckles or winches for tensioning. Ensure that all connections, like thimble loops, are secured before applying tension.
8. How should a thimble be worn? While the context mostly discussed wire rope thimbles, if you’re talking about sewing thimbles, they are typically worn on the middle finger to assist in pushing needles through fabric.
9. Where can I find accessories for wire ropes and slings? Browse a diverse range of hardware suitable for wire ropes and slings in the Rigging Accessories category.
